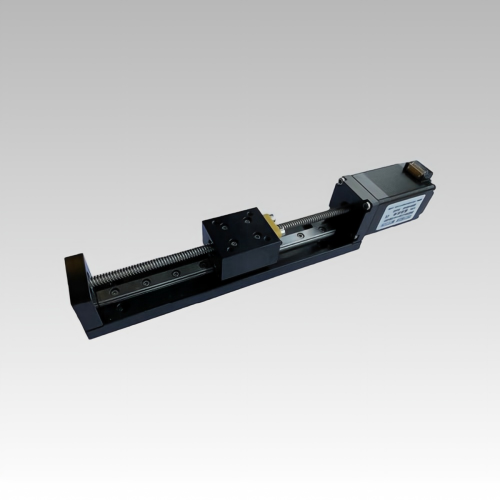

The NEMA 14 (35mm) linear actuator stage is a high-precision motion module that integrates a stepper motor, lead screw, and guided slide into one ready-to-integrate solution. With a 35mm × 35mm frame, this linear stage offers exceptional thrust output up to 610N, making it suitable for more demanding precision automation applications. The module is available in external, non-captive, and captive configurations to suit various mechanical designs.
Typical Applications:
Machine Vision Inspection · Medical Equipment · Semiconductor Processing · Industrial Automation · 3D Printers · CNC Routers · Laser Engravers · Optical Instruments

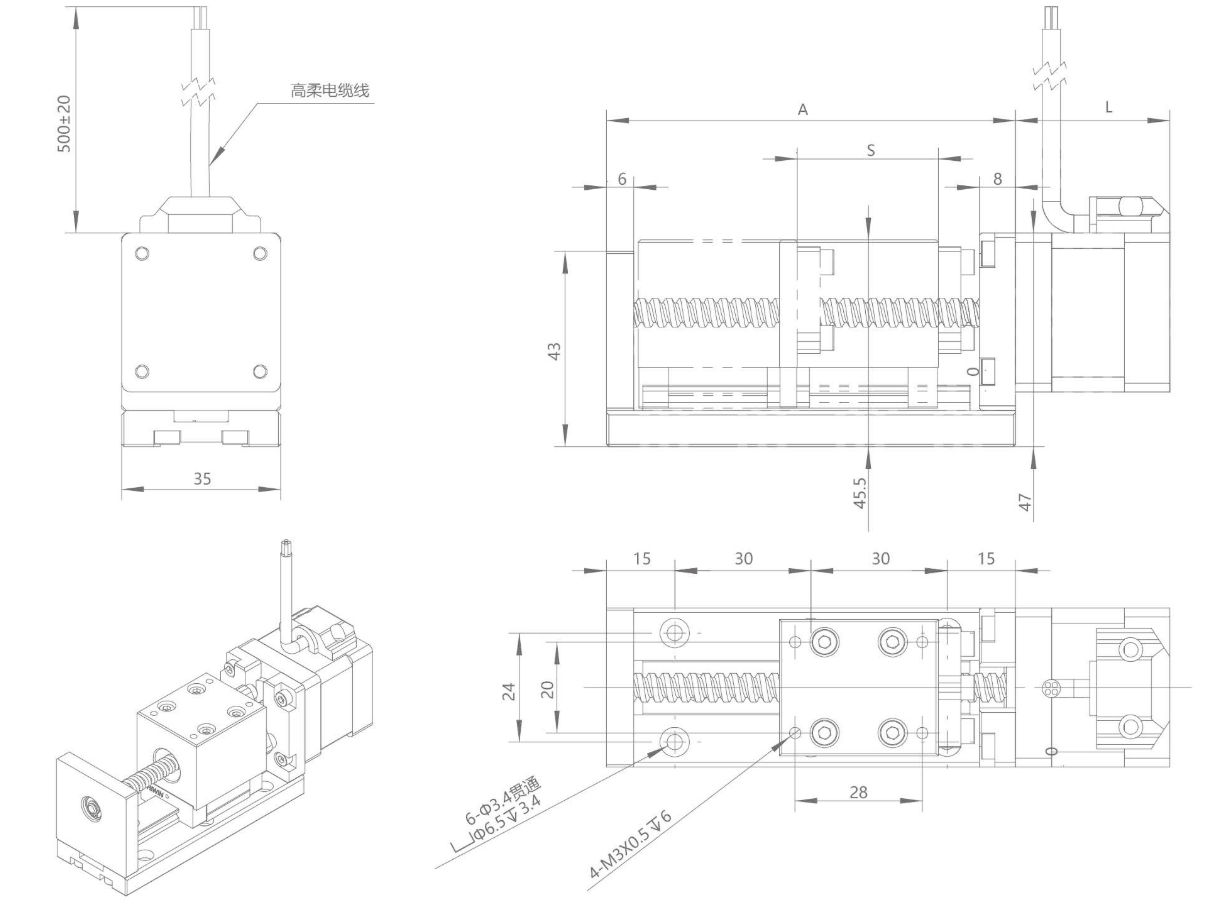

| 电机规格 Motor size | 相电压(V) Voltage/Phase | 相电流(A) Current/Phase | 相电阻(Ω) Resistance/Phase | 相电感(mH) Inductance/Phase | 电机线数 Number of lead wires | 转子惯量(g·cm²) Rotor inertia | 电机重量(g) Motor weight | 电机长度L(mm) Motor length |
| 35 | 1.4 | 1.5 | 0.95 | 1.4 | 4 | 20 | 190 | 34 |
| 35 | 2.9 | 1.5 | 1.9 | 3.2 | 4 | 30 | 230 | 47 |
| 丝杆直径(mm) Lead screw diameter | 导程(mm) Lead | 步长(mm) Step | 断电自锁力(N) Power off self-locking force |
| 6.35 | 1.27 | 0.00635 | 150 |
| 6.35 | 3.175 | 0.015875 | 40 |
| 6.35 | 6.35 | 0.03175 | 15 |
| 6.35 | 12.7 | 0.0635 | 3 |
| 6.35 | 25.4 | 0.127 | 0 |
| 行程S(mm) Stroke | 30 | 60 | 90 |
| 尺寸A(mm) Dimension A | 90 | 120 | 150 |
