Home » Products » CNC Digital Cutting Solutions » Creasing Wheel Tool Assemblies » SOYA SYCWD38V CNC V-Shape Creasing Wheel Tool Assembly (D40 Shank)

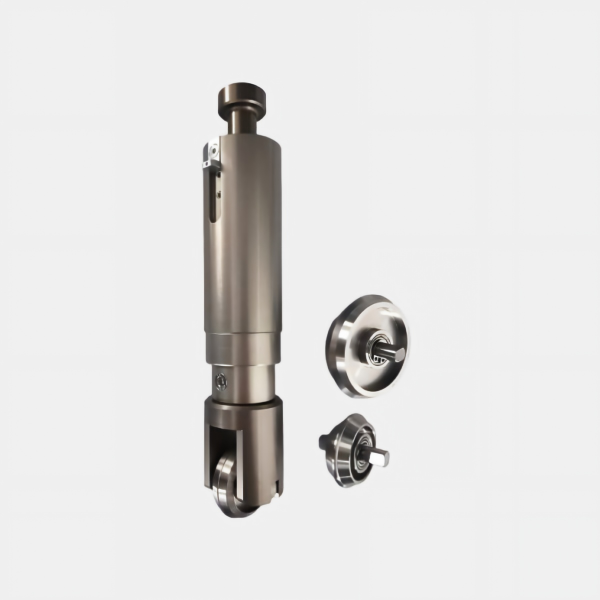

SOYA SYCWD38V CNC V-Shape Creasing Wheel Tool Assembly (D40 Shank)

The SOYA SYCWD38 V is a professional industrial-grade CNC Creasing Wheel Tool Assembly engineered by SoyaMotor. Designed with a standard D40mm shank diameter, this versatile tool creates clean, precise crease lines by rolling high-rigidity wheels over material surfaces. It features a quick-change mechanism supporting various wheel specifications (including D38 V-wheels, D38 round-wheels, and D54 V-wheels) to achieve perfect folding results on corrugated paper, cardstock, and fluted plastics.

Model:
SYCWD38V
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA Precision CNC Creasing Wheel Tool Series (D40 Shank)

Optimize your packaging, structural design, and prototyping production with the high-performance SOYA CNC Creasing Wheel Tool Series. Available in three dedicated configurations—SYCWD38V, SYCWD38R, and SYCWD54V—this series is engineered to roll precise, clean, and flawless fold lines into diverse structural materials without cracking or tearing the surface liners.

Key Features & Benefits

⚡ Quick-Change Mechanical Structure Features an agile housing system allowing rapid tooling swaps on your digital cutting table, effortlessly matching different material thicknesses and bending tolerances.

⚙️ 3 Targeted Profile Selections Choose between 38mm V-shape, 38mm Round (Radius), or heavy-duty 54mm V-shape profiles to achieve the perfect structural folding line for any project.

Tear-Free Precision Scoring The specialized rolling edge delivers deep, uniform impressions that optimize downward force while protecting face paper and corrugated flutes from structural rupture.

Standard D40 Rigidity Shank Built with an industry-standard D40mm shank diameter to minimize mechanical play, offering direct drop-in integration with global high-end digital flatbeds.

Optimized Folding & Creasing Materials

Corrugated Paper Board Heavy Packaging Cardstock Fluted / Corrugated Plastics Greyboard Structural Inserts Honeycomb Corrugated Liners

Technical Specifications & Model Matrix

Model Code	Wheel Profile	Diameter	Shank Size	Best Suited For
SYCWD38V	V-Shape Wheel	38 mm	D40 mm	Standard corrugated folds & carton boxes
SYCWD38R	Round (Radius) Wheel	38 mm	D40 mm	Heavy cardstock scoring & solid board creasing
SYCWD54V	V-Shape Wheel	54 mm	D40 mm	Thick corrugated plastics & deep packaging folds

Why Choose SOYAMOTOR?

Our roots go back to 2002 as “Songya Motor Control Factory”. In 2017, we incorporated as Changzhou Songya Electromechanical Co., Ltd., marketing our systems worldwide under our registered brand SOYAMOTOR. Leveraging over 20 years of deep expertise in stepper, servo, and brushless motor manufacturing, we design and produce a comprehensive range of premium CNC digital cutting tools on our own shop floor. Beyond oscillating knives, our in-house production includes servo oscillating knives, drag knives, kiss-cut knives, creasing wheels, rotary knives, V-cut tools, and punching tools—delivering factory-direct precision with 100% traceable quality.

✓ 20+ Years Industrial Expertise ✓ In-House Motor & Tool Manufacturing ✓ 100% Traceable Quality Control

SYCWD38V D38 V shape creasing wheel CNC creasing tool V groove cardboard creasing tool digital cutting machine wheel D38 creasing wheel corrugated box creaser SoyaMotor SYCW40
