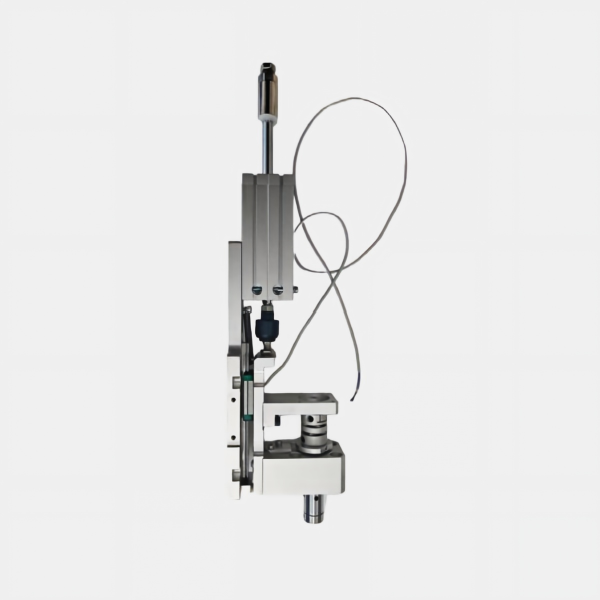

SOYA SYPT40R Rotary CNC Round Punching Tool Assembly (D40 Shank)

The SOYA SYPT40R is a high-efficiency industrial CNC Rotary Round Punching Tool Assembly engineered by SoyaMotor. Combining a high-speed motorized spindle with a powerful pneumatic cylinder (30mm stroke), this specialized module rotates the punch head rapidly while driving it vertically to achieve flawless rotary-slice perforations. It features micro-depth adjustment and customizable punch distance, perfectly optimized for punching genuine leather, faux leather, PU, PVC, EVA, SBR, fabrics, and heavy cardstock under 5mm.

Model:
SYPT40R
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA SYPT40R Motorized Rotary CNC Round Punching Tool (D40)

Empower your digital cutting table with heavy-duty perforation capabilities using the high-performance SOYA SYPT40-R CNC Rotary Round Punching Tool. Utilizing a hybrid motorized spindle and pneumatic actuator mechanism, this tool rotates the punch tip at high speeds while executing rapid reciprocating vertical strokes. This dual-action rotary-slicing method ensures exceptionally clean, burr-free round holes on tough or elastic materials with maximum throughput.

Key Features & Benefits

⚡ Advanced Rotary-Slice Action Driven by an integrated motor, the spindle rotates during the plunge phase, significantly decreasing material resistance and preventing tearing on flexible fibers.

⚙️ 30mm Pneumatic Cylinder Stroke Equipped with a powerful, fast-acting pneumatic cylinder delivering a robust 30mm stroke, guaranteeing crisp penetrations through dense substrates up to 5mm thick.

Micro-Depth & Distance Tweak Features precision adjustable mechanical stops for micro-tuning penetration depth and punch spacing, prolonging sacrificial underlay mat lifespan.

Unified D40 Industrial Shank Built upon a rigid industry-standard D40mm shank base, ensuring complete structural compatibility and effortless drop-in loading on major digital flatbeds.

High-Precision Perforation Material Applications

Engineered to punch crisp, perfect holes through layered, tough, or flexible industrial stocks:

Genuine Leather Automotive Trim Faux Leather / Synthetic Vinyl PU & PVC Footwear Foams EVA Cushioning Inserts SBR Neoprene Foam Sheet Industrial Heavy Fabrics Cardboard & Kraft Linerboard

Technical Specifications

Parameter	Specification
Model Code	SYPT40R
Product Name	CNC Motorized Rotary Round Punching Tool Assembly
Actuation System	Motorized Spindle Rotation + Pneumatic Cylinder Plunge
Cylinder Stroke	30 mm
Shank Diameter	40 mm
Max Punching Thickness	< 5 mm (Material Dependent)
Adjustable Features	Micro-depth Control & Adjustable Spacing

Why Choose SOYAMOTOR?

Our roots go back to 2002 as “Songya Motor Control Factory”. In 2017, we incorporated as Changzhou Songya Electromechanical Co., Ltd., marketing our systems worldwide under our registered brand SOYAMOTOR. Leveraging over 20 years of deep expertise in stepper, servo, and brushless motor manufacturing, we design and produce a comprehensive range of premium CNC digital cutting tools on our own shop floor. Beyond oscillating knives, our in-house production includes servo oscillating knives, drag knives, kiss-cut knives, creasing wheels, rotary knives, V-cut tools, and punching tools—delivering factory-direct precision with 100% traceable quality.

✓ 20+ Years Industrial Expertise ✓ In-House Motor & Tool Manufacturing ✓ 100% Traceable Quality Control
