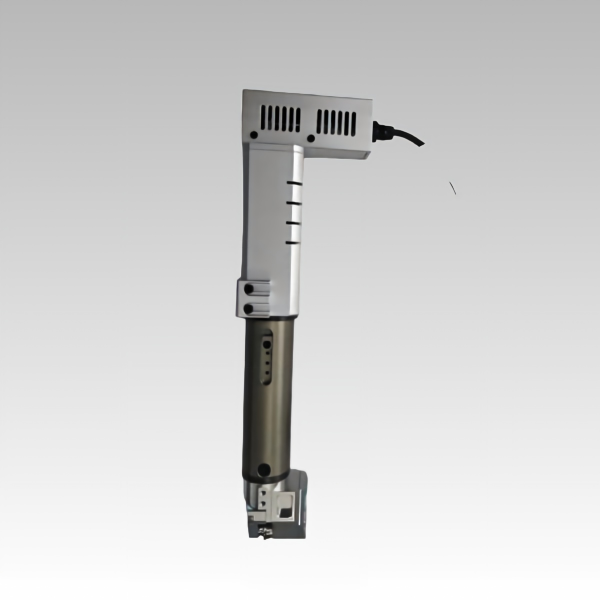

SOYA SYRK40 Motorized Driven Rotary Knife Tool Assembly (200W)

The SOYA SYRK40 is a professional 200W CNC Motorized Driven Rotary Knife Tool engineered by SoyaMotor. Spinning active circular blades (22mm to 110mm diameter) up to 11,000 RPM, it delivers reliable mechanical shearing force with standard D40mm shank rigidity. It is designed to cut flawlessly through woven textiles, apparel fabrics, banners, and carbon fiber prepregs with zero edge fraying or thread pulling.

Model:
SYRK40
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA SYRK40 Motorized Driven Rotary Knife Tool Series (200W)

Achieve high-velocity, precision continuous cutting on flexible and woven textiles with the premium SOYA SYRK40 CNC Driven Rotary Knife Series. Driven by a robust 200W high-performance motor, this advanced tool spins circular blades up to 11,000 RPM to shear cleanly through materials without pulling or fraying. It is highly optimized for fast-paced profiling of complex industrial fabrics, advanced composites, and thin automotive interior layers.

Key Features & Benefits

⚡ High-Torque 200W Active Drive Features an integrated 200W motor driving active blade rotations up to 11,000 RPM, providing superior cutting force compared to passive cutters on multi-ply composites.

⚙️ 6 Specialized Diameter Configurations Available in 6 distinct model subsets optimized for different circular blade diameter ranges (from 20mm up to heavy-duty 110mm) to match your cutting radius.

Fray-Free High Frequency Cutting The active motorized shearing eliminates thread pulling, ensuring perfectly clean, burr-free edges on loose weaves, high-strength glass fibers, and thin copper skins.

Rigid D40 Shank & Dual Motor Choices The industry-standard D40mm shank base guarantees complete mechanical alignment. Available with imported premium motors or cost-efficient domestic powertrains.

Fray-Free Active Shearing Material Applications

Woven Textiles & Apparel Fabrics Carbon Fiber Prepreg Sheets Glass Fiber Industrial Composites Heavy Blankets & Soft Carpets Thin Copper Foil & Metallic Skins Fleece / Sheep Velvet Trim UV Cloth, Banners & Awning Materials

Technical Specifications & Model Matrix

Model Code	Blade Diameter Range	Spindle Speed	Motor Power	Shank Diameter
SYRK40-2255	22 ~ 55 mm	0 ~ 11,000 RPM	200 W	D40 mm
SYRK40-2055	20 ~ 55 mm	0 ~ 11,000 RPM	200 W	D40 mm
SYRK40-2036	20 ~ 36 mm	0 ~ 11,000 RPM	200 W	D40 mm
SYRK40-2290	22 ~ 90 mm	0 ~ 11,000 RPM	200 W	D40 mm
SYRK40-22110	22 ~ 110 mm	0 ~ 11,000 RPM	200 W	D40 mm
SYRK40-2685	26 ~ 85 mm	0 ~ 11,000 RPM	200 W	D40 mm

Why Choose SOYAMOTOR?

Our roots go back to 2002 as “Songya Motor Control Factory”. In 2017, we incorporated as Changzhou Songya Electromechanical Co., Ltd., marketing our systems worldwide under our registered brand SOYAMOTOR. Leveraging over 20 years of deep expertise in stepper, servo, and brushless motor manufacturing, we design and produce a comprehensive range of premium CNC digital cutting tools on our own shop floor. Beyond oscillating knives, our in-house production includes servo oscillating knives, drag knives, kiss-cut knives, creasing wheels, rotary knives, V-cut tools, and punching tools—delivering factory-direct precision with 100% traceable quality.

✓ 20+ Years Industrial Expertise ✓ In-House Motor & Tool Manufacturing ✓ 100% Traceable Quality Control

SYRK40 driven rotary tool CNC motorized rotary knife fabric cutting wheel CNC SoyaMotor
