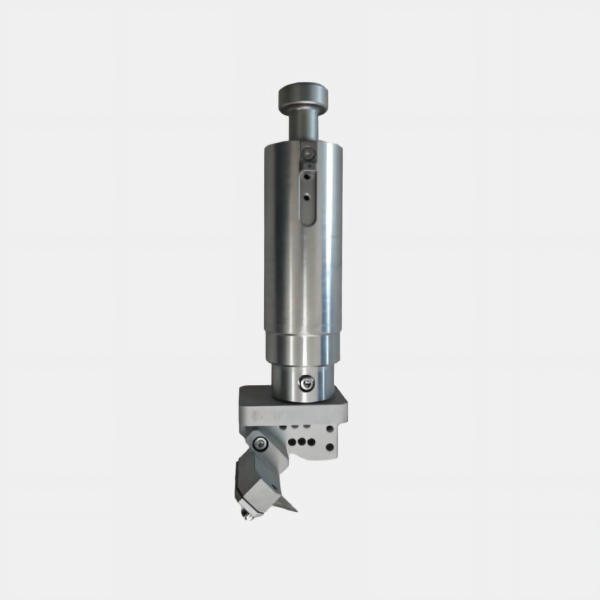

SOYA SYVC40 Adjustable Angle V-Cut Tool Assembly for CNC Machine (D40)

The SOYA SYVC40 is a professional industrial-grade CNC V-Cut & Bevel Cutting Tool engineered by SoyaMotor. Featuring a standardized D40mm shank diameter, this tool allows operators to quickly alter the blade installation angle (0°, 15°, 22.5°, 30°, 45°) to produce precision V-grooves, miters, and complex bevel profiles. Perfect for soft glass, PVC, honeycomb board, and thick cardstock with clean, burr-free finishes.

Model:
SYVC40
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA SYVC40 Multi-Angle CNC V-Cut Tool (D40)

Expand your fabrication capabilities with the high-precision SOYA SYVC40 CNC V-Cut Tool. By simply altering the installation angle of the blade, this versatile tool enables your digital cutting table to craft exact V-grooves, sharp miter folds, and clean angled bevels. Engineered with a robust blade rotation mechanism, it guarantees effortless operation and impeccable accuracy across various thick industrial substrates.

Key Features & Benefits

5-Position Angle Adjustment Supports indexing at 5 critical cutting angles: 0°, 15°, 22.5°, 30°, and 45° to seamlessly fulfill complex 3D folding and creasing demands.

⚙️ Smooth Blade Tip Rotation The specialized tool design ensures the blade tip rotates smoothly during multi-directional paths, eliminating binding on tight corners.

Heavy-Duty Rigidity Constructed from high-tensile premium materials to suppress deflections or vibrations when processing tough, thick materials.

Universal D40 Shank Features a industry-standard D40mm shank diameter for quick and hassle-free mechanical loading onto professional CNC cutting tables.

Perfect V-Grooving & Folding Materials

Optimized for making perfect folds, boxes, and angled joints out of flexible or rigid boards:

Soft Glass / Flexible PVC Rigid PVC Boards Honeycomb Cardboard KT / Foam Core Boards Corrugated Cardboard Vertical Corrugated Plastic Greyboard / Heavy Cardstock

Technical Specifications

Parameter	Specification
Model Code	SYVC40
Product Name	CNC Multi-Angle V-Cut Tool Assembly
Adjustable Angles	0°, 15°, 22.5°, 30°, 45°
Shank Diameter	D40 mm
Max Cutting Thickness	< 30 mm (Material Dependent)

Why Choose SOYAMOTOR?

Our roots go back to 2002 as “Songya Motor Control Factory”. In 2017, we incorporated as Changzhou Songya Electromechanical Co., Ltd., marketing our systems worldwide under our registered brand SOYAMOTOR. Leveraging over 20 years of deep expertise in stepper, servo, and brushless motor manufacturing, we design and produce a comprehensive range of premium CNC digital cutting tools on our own shop floor. Beyond oscillating knives, our in-house production includes servo oscillating knives, drag knives, kiss-cut knives, creasing wheels, rotary knives, V-cut tools, and punching tools—delivering factory-direct precision with 100% traceable quality.

✓ 20+ Years Industrial Expertise ✓ In-House Motor & Tool Manufacturing ✓ 100% Traceable Quality Control
