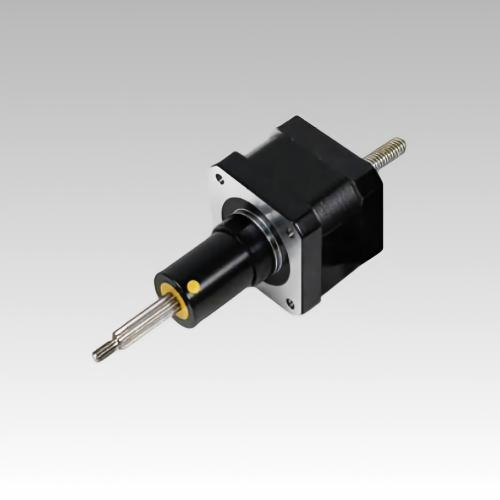

The NEMA 14 (35mm) external drive type hybrid ball screw stepper motor combines a powerful 2-phase 1.8° stepper motor with a precision ball screw assembly in external drive configuration — where the screw rotates and the nut moves linearly along the screw. This design enables long stroke lengths (up to 500mm) and is ideal for applications with external guide rails. The ball screw mechanism delivers up to 90% efficiency with near-zero backlash, providing superior positioning accuracy and repeatability. This linear actuator is designed for demanding precision automation applications including semiconductor processing, medical equipment, and machine vision inspection.
Structure Type: External Drive — Screw rotates, nut moves linearly. Best for long stroke applications with external guide rails.
| 电机规格 Motor size | 相电压(V) Voltage/Phase | 相电流(A) Current/Phase | 相电阻(Ω) Resistance/Phase | 相电感(mH) Inductance/Phase | 电机线数 Number of lead wires | 转子惯量(g·cm²) Rotor inertia | 电机重量(g) Motor weight | 电机长度L(mm) Motor length |
| 35 | 1.4 | 1.5 | 0.95 | 1.4 | 4 | 20 | 190 | 34 |
| 35 | 2.9 | 1.5 | 1.9 | 3.2 | 4 | 30 | 230 | 47 |
