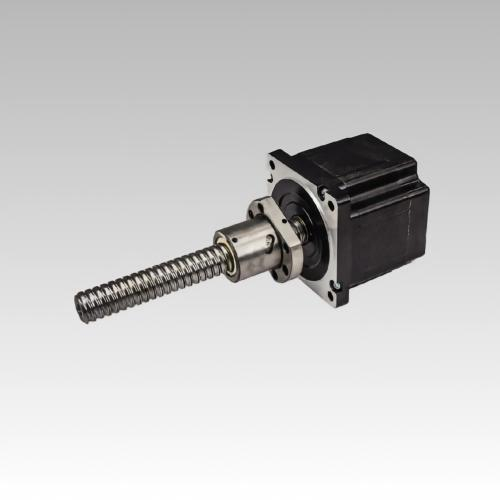

The NEMA 24 (60mm) hybrid ball screw stepper motor combines a high-performance 2-phase 1.8° stepper motor with a precision ball screw assembly, providing efficient linear motion in a 60mm frame size. The ball screw mechanism utilizes recirculating steel balls to achieve up to 90% efficiency with minimal friction and near-zero backlash, ensuring exceptional positioning accuracy and repeatability. This linear actuator delivers high thrust capacity with excellent power density, making it a reliable choice for demanding industrial applications.
Key Distinction: This is a ball screw linear actuator — offering higher efficiency, longer life, and better positioning accuracy than lead screw (ACME/T-type) alternatives, at a higher cost point.

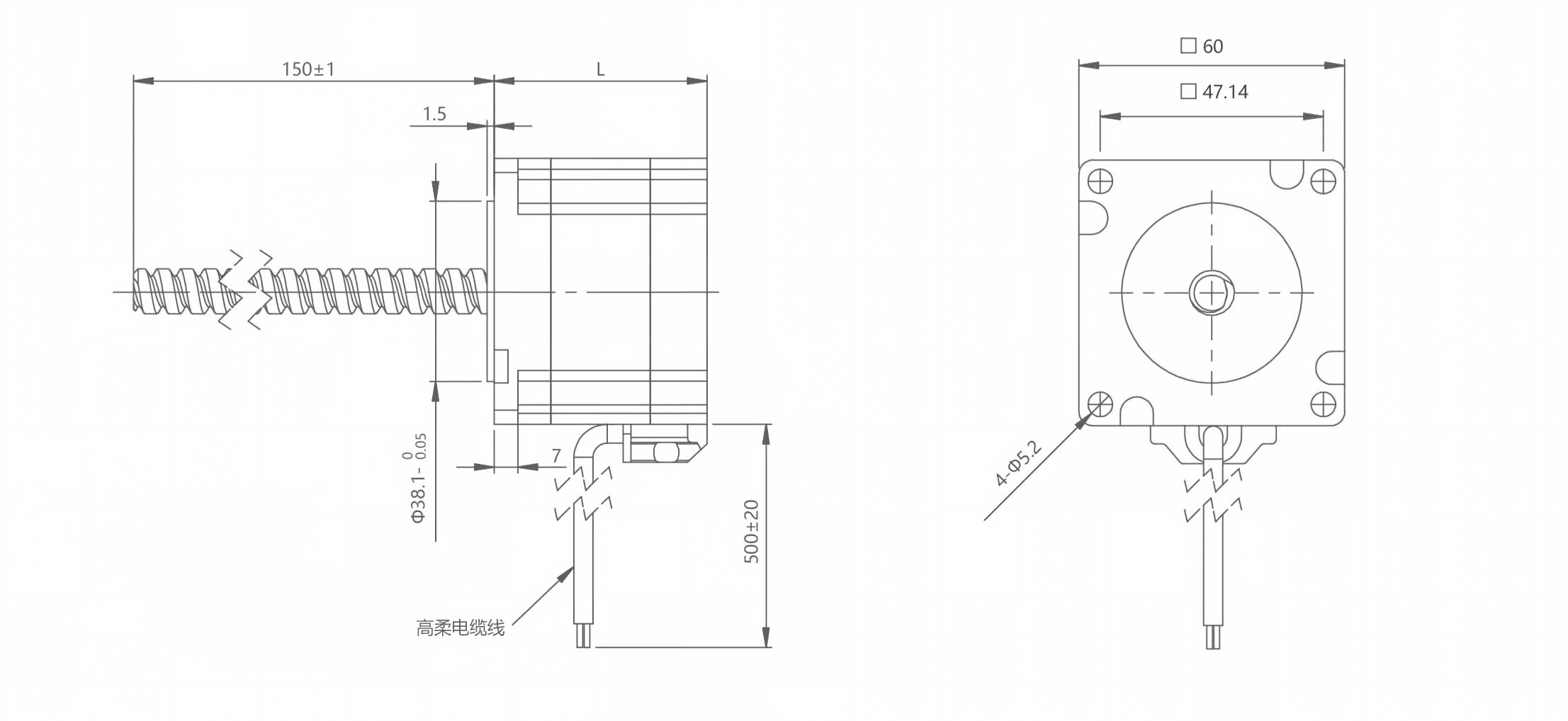

| 电机规格 Motor size | 相电压(V) Voltage/Phase | 相电流(A) Current/Phase | 相电阻(Ω) Resistance/Phase | 相电感(mH) Inductance/Phase | 电机线数 Number of lead wires | 转子惯量(g·cm²) Rotor inertia | 电机重量(g) Motor weight | 电机长度L(mm) Motor length |
| 60 | 2.1 | 5 | 0.42 | 1.3 | 4 | 340 | 750 | 55 |
| 60 | 2.9 | 5 | 0.57 | 1.98 | 4 | 590 | 1100 | 75 |
