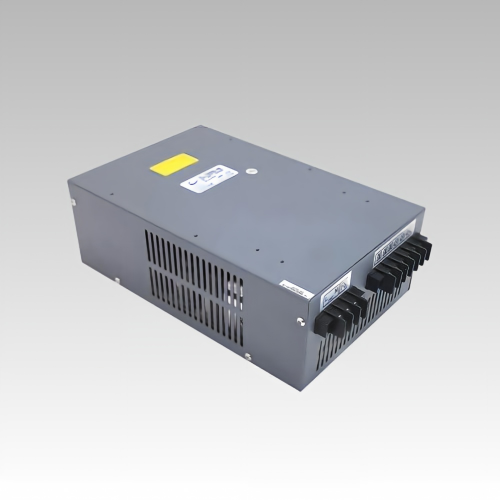

TL-1000S 1000W High Power Enclosed Single Output Switching Power Supply

TL-1000S 1000W standard switching power supply 24V 48V full protection for high torque stepper servo CNC machinery

Model:
TL-1000S
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

TL-1000S is a 1000W single-group output enclosed power supply, voltage input range: 90-132VAC/180-264VAC (switch on via switch), 240-370VDC (switch on 230VAC), the whole series provides 12V,24V,36V,48V, with a built-in long-life fan, so that the power supply can be operated with full load in the temperature range of -20℃ to +70℃ temperature range. And with complete protection features, complying with full international safety regulations, they provide a cost-effective solution for a variety of industrial applications.

Product features：
International universal full-range AC input
Imported brand components are used for key components
AC input range switched via switch
Fan cooling
High efficiency, long life, high reliability
Operating temperature up to 70°C
Protection types: short circuit, over current, over voltage, over temperature
Meets 5000 meter altitude applications
