SOYA DM420 2-Phase Digital Open-Loop Stepper Motor Driver (Max 2.2A)

The SOYA DM420 is an ultra-reliable, compact 2-phase digital open-loop stepper motor driver engineered by SoyaMotor. Based on advanced 32-bit DSP control technology, this driver operates within a voltage range of DC 24V-48V (8V-48V operational) and delivers up to a 2.2A peak current output. Featuring unique circuit sampling similar to servo principles, it suppresses low-speed resonance, reduces motor heat, and ensures ultra-smooth motion. Built upon our own factory floor, this driver is highly optimized for powering NEMA 14, NEMA 17, and light-duty NEMA 23 open-loop stepper motors in medical automation pipetting, small engraving machines, and 3D printing applications.

Model:
DM420
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA DM420 2-Phase Digital Stepper Motor Driver Series

Power your open-loop motion control systems with the high-performance SOYA DM420 2-phase digital stepper driver. Utilizing advanced 32-bit DSP technology and a unique control algorithm similar to servo principles, this compact driver provides smooth dynamic performance, ultra-low vibration, and reduced motor heat generation. It offers up to 128 microstep subdivisions and multiple built-in error protections, making it an excellent solution for driving precision open-loop micro actuators.

Key Features & Benefits

▶ 32-Bit DSP Technology

Advanced software processor computes precise current loop control, drastically eliminating resonance and operational audio noise at low speeds.

▶ High-Resolution Subdivisions

Supports 16 adjustable speed levels of equal angle constant torque microsteps, scalable up to 128 high-definition subdivisions for exact smoothness.

▶ Optocoupler-Isolated Input

Features strong anti-interference differential signal logic along with over-voltage, under-voltage, and over-current industrial loop protection.

▶ Adaptive Current Control

Smooth current adjustment greatly minimizes structural motor heat during operation, which significantly improves individual machine service life.

Typical Applications

Medical Automation Pipetting Pick and Place Machines Laser Engravers Desktop 3D Printers Text Automation Devices

Technical Specifications

Model No.	Drive Type	Matched Voltage	Matched Current	Control Description
SY-DM420	2-Phase Open-Loop	DC 24V - 48V (8V - 48V Operational)	2.2A Peak Current	Pulse & Direction (PUL/DIR) Control

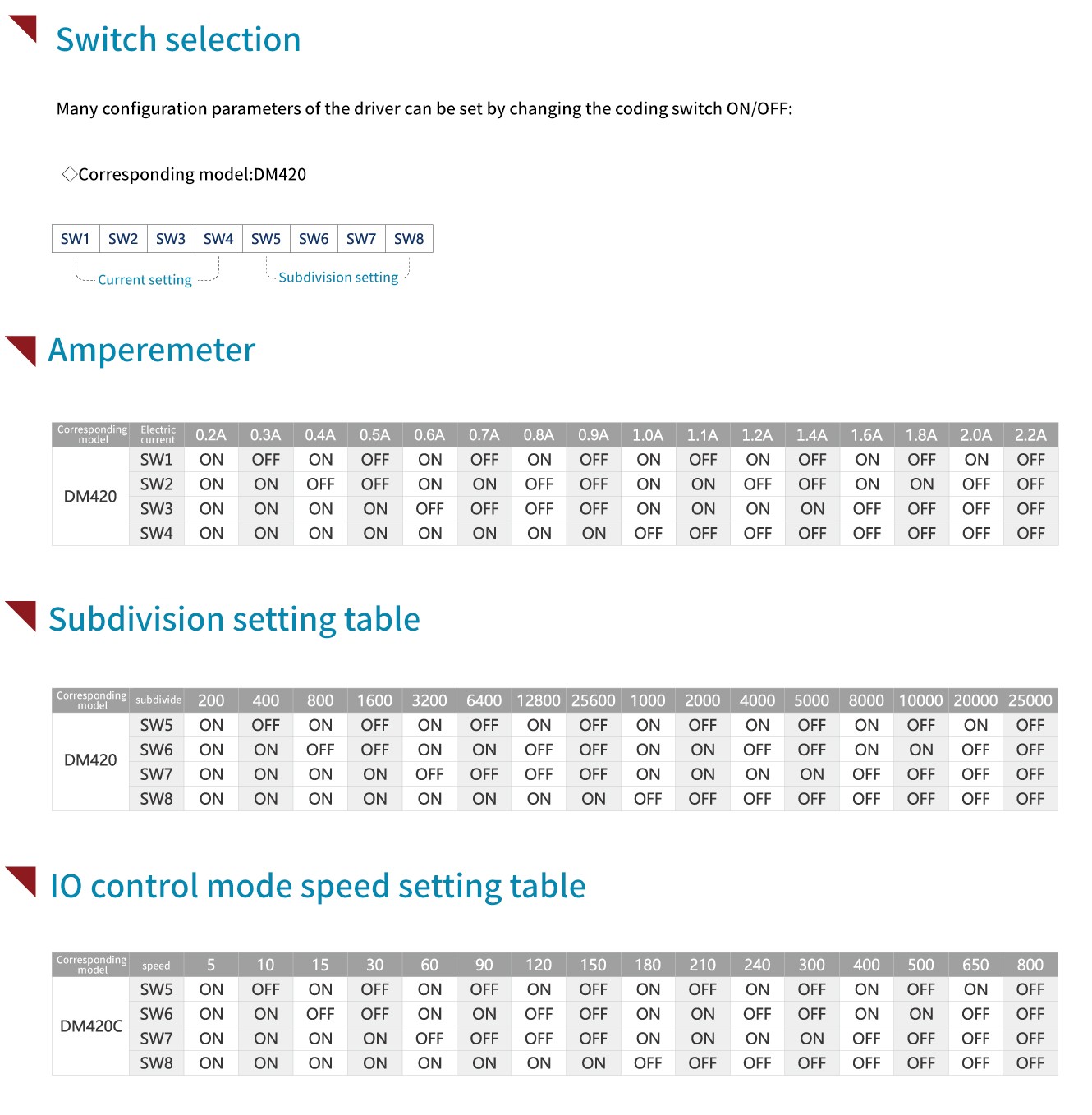

Switch Selection & Parameter Settings

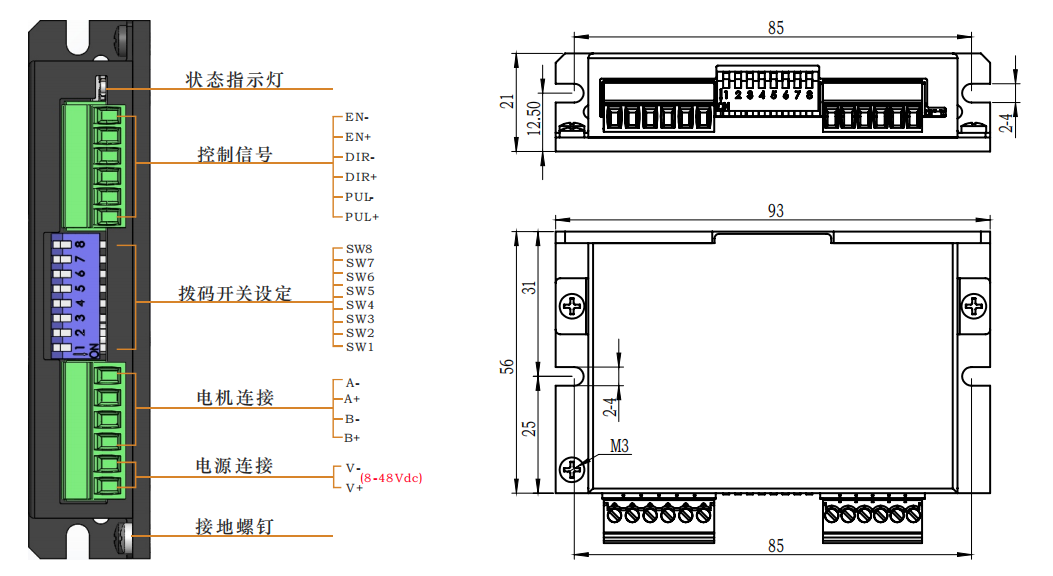

DM420-1 Open Loop Stepper Motor Drive DM420-2 Open Loop Stepper Motor Drive
