SOYA DM865 2-Phase Heavy-Duty Digital Open-Loop Stepper Motor Driver (Max 6.5A)

The SOYA DM865 is a high-performance, industrial-grade 2-phase heavy-duty digital open-loop stepper motor driver engineered by SoyaMotor. When powering heavy-duty NEMA 34 motors for stone cutting, woodworking, or sheet metal automation, current stability is vital. This advanced drive operates within a wide voltage range of DC 24V-80V and delivers a high current output up to 6.5A peak current. Built upon our own factory floor, the SOYAMOTOR DM865 features upgraded thermal heat sinks and high-voltage tolerances, delivering premium dynamic torque output, multi-level subdivision to reduce running vibration, and excellent high-speed performance for demanding industrial applications worldwide.

Model:
SY-DM865
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA DM865 2-Phase Heavy-Duty Digital Stepper Driver Series

Empower your high-torque industrial automation with our robust SOYA DM865 2-phase heavy-duty digital stepper driver. Engineered specifically for demanding multi-axis CNC systems and raw mechanical drives, this premium open-loop actuator drive features upgraded heavy aluminum heat sinks and exceptional high-voltage tolerance. With advanced 32-bit digital current loop control, it delivers rigid high-speed torque consistency while eliminating resonance spikes under load.

Key Features & Benefits

▶ High Current Output for Large Motors

Supplies stable peak current configurations up to 6.5A, perfectly suited to drive heavy-duty NEMA 34 actuators with extreme force rigidity.

▶ Wide Voltage & High Speed

Supports DC 24V-80V wide voltage management, optimizing electronic power transmission to secure excellent dynamic high-speed performance.

▶ Multi-Level Subdivision Smoothing

Integrated fine microstep settings dynamically smooth motor step translations, drastically minimizing physical low-speed operational vibration.

▶ Upgraded Industrial Thermal Design

Features reinforced structural cooling architecture to sustain continuous, long-hour reliable production line operations under heavy workloads.

Typical Applications

CNC Stone Cutting Machines Industrial Woodworking Machinery Sheet Metal Automation Heavy Packaging Systems Automated Conveyor Drives

Technical Specifications

Model No.	Drive Type	Matched Voltage	Matched Current	Control Description
SY-DM865	2-Phase Open-Loop	DC 24V - 80V Wide Input	2.8A - 6.5A Peak Current	Pulse & Direction (PUL/DIR) Control

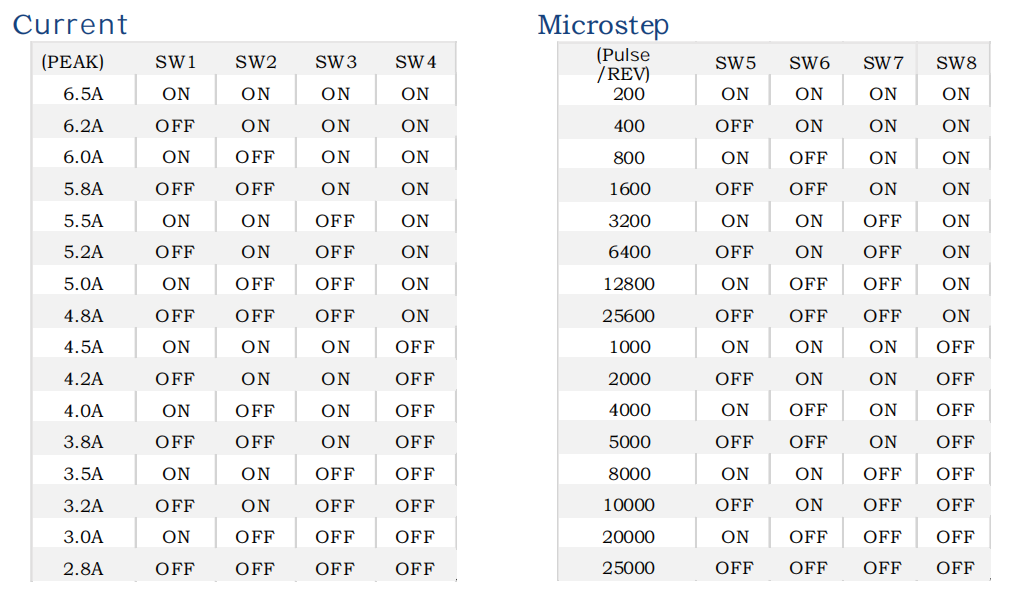

Switch Selection & Parameter Settings

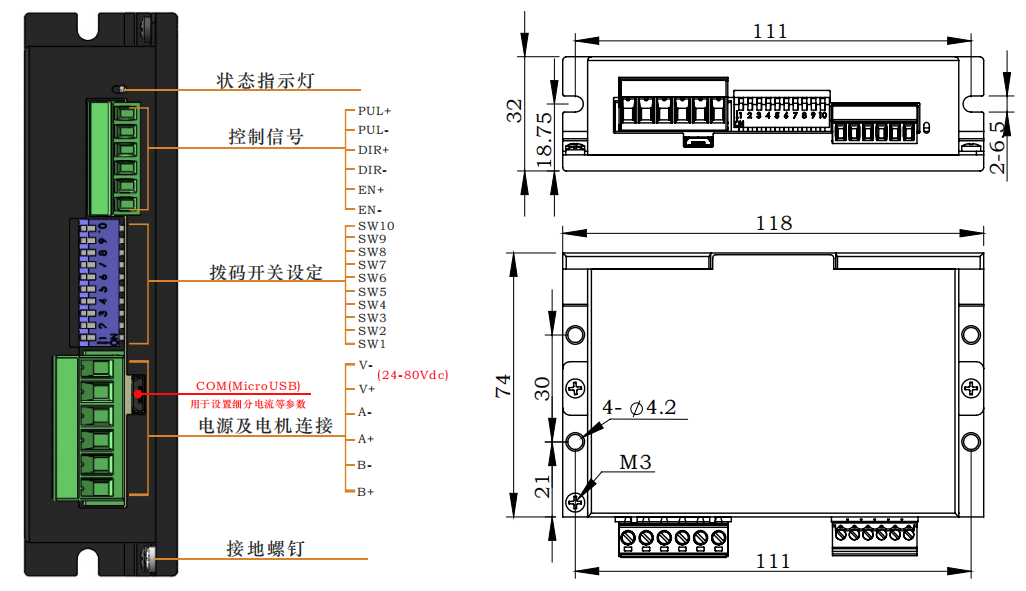

DM865-2 Open Loop Stepper Motor Drive
