PG42
SOYA
| Availability: | |
|---|---|
| Quantity: | |

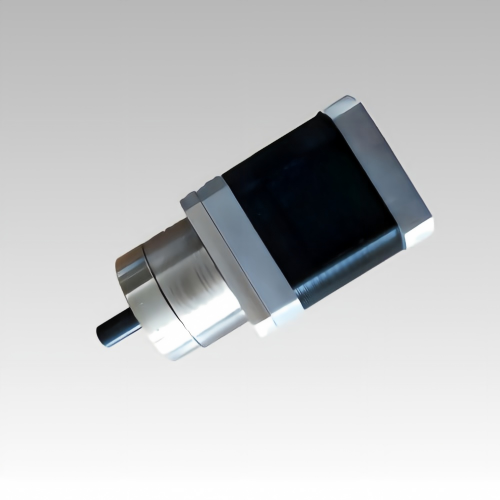

Multiply output torque and secure flawless low-speed positioning smoothness with the industrial SOYA NEMA 17 series precision planetary geared stepper motor. Encased in a rugged, fully sealed 42mm square IP65 structural frame, this high-performance line integrates scalable 1st, 2nd, and 3rd stage inline gearboxes. Driven by engineered low-backlash powder metallurgic tooth matrices, it handles extreme loading peaks up to 14.0N.m with ultra-reliable operational lifespan consistency under harsh automation processing environments.
Multi-stage internal planetary reduction multiplies input force dynamically, delivering robust continuous output loads scaling up to 14.0N.m.
Engineered with fine-pitch tooth matrices to restrict backlash limits within narrow arc minutes, ensuring rigorous bi-directional tracking.
Entirely shielded housing structure paired with premium grease lubrication keeps components humming whisper-quietly below 45dB.
Premium high-speed input bearings enable up to 5000 RPM maximum input tolerances to seamlessly sustain 20,000-hour manufacturing cycles.
| Specifications | 1st Stage | 2nd Stage | 3rd Stage |
|---|---|---|---|
| Gear Ratio | 3.71; 5.18 | 14; 19; 27 | 51; 71; 100; 139 |
| Length (mm) | 31 | 38.5 | 48.2 |
| Rated Load (N·m) | 1.8 | 3 | 4.8 |
| Max Load (N·m) | 5.3 | 8.9 | 14 |
| Efficiency (%) | 90 | 81 | 73 |
| Backlash (arc min) | ≤ 60 | ≤ 75 | ≤ 90 |
| Weight (kg) | 0.2 | 0.25 | 0.3 |
| Rated Input Speed (RPM) | 3000 | 3000 | 3000 |
| Max Input Speed (RPM) | 5000 | 5000 | 5000 |
| Protection Class (IP) | 65 | 65 | 65 |
| Lubrication | Grease | Grease | Grease |
| Noise (dB) | ≤ 45 | ≤ 45 | ≤ 45 |
| Lifespan (h) | 20000 | 20000 | 20000 |
