SY86PG
SOYA
| Availability: | |
|---|---|
| Quantity: | |

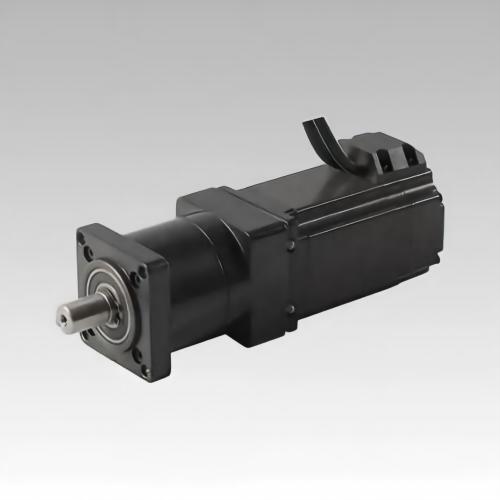

Multiply output transmission power and achieve uncompromising low-backlash accuracy under massive stress with the heavy-duty SOYA NEMA 34 series precision planetary geared stepper motor. Encased in a rugged, fully sealed 86mm square IP65 structural frame, this flagship lineup integrates inline 1st and 2nd stage premium planetary reducers. Engineered with high-strength tooth geometries to ensure up to 96% operational efficiency, it effortlessly fields extreme torque loads up to 160N.m for rigid execution in heavy automated manufacturing cells.
Heavy-duty inline planetary reduction amplifies torque dynamically, delivering exceptional continuous output capacity up to a peak load of 160N.m.
Engineered with tight gear tolerances to restrict backlash within ≤15 arc minutes on 1st stage builds, securing exact bi-directional machine tracking.
High-precision gear alignments yield ultra-efficient power conversion up to 96%, minimizing thermal load and keeping operation quiet under 45dB.
Fully dustproof and water-resistant mechanical sealing paired with advanced lifetime grease lubrication sustains 20,000-hour manufacturing cycles.
| Specifications | 1st Stage | 2nd Stage |
|---|---|---|
| Gear Ratio | 4; 5; 7; 9; 10 | 16; 20; 25; 28; 35; 36; 40; 45; 49; 50; 63; 70; 81; 90; 100 |
| Length (mm) | 73 | 78 |
| Rated Load (N·m) | 50 | 80 |
| Max Load (N·m) | 100 | 160 |
| Efficiency (%) | 96 | 94 |
| Backlash (arc min) | ≤ 15 | ≤ 25 |
| Weight (kg) | 2 | 2.5 |
| Rated Input Speed (RPM) | 3000 | 3000 |
| Max Input Speed (RPM) | 5000 | 5000 |
| Protection Class (IP) | 65 | 65 |
| Lubrication | Grease | Grease |
| Noise (dB) | ≤ 45 | ≤ 45 |
| Lifespan (h) | 20000 | 20000 |
