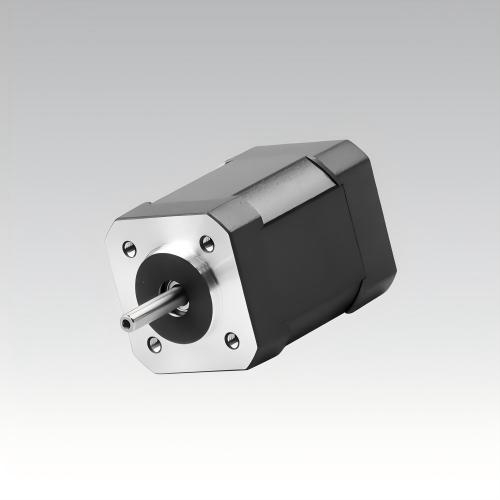

Unlock extreme operational efficiency and high-speed motion smoothness with the industrial SOYA NEMA 17 (42mm) brushless DC (BLDC) motor series. Featuring a standard 42mm square frame size, this premium actuator line handles constant velocities up to a high-speed 4000 RPM rated threshold. Specially engineered with an 8-pole high-density magnetic circuit and class B thermal insulation materials, it completely eliminates carbon brush friction and wear metrics. Providing robust rated torques up to 0.185N.m, it is an ideal maintenance-free solution built for long-hour continuous operations in precision cosmetic devices and high-end consumer appliances.
Electronic commutation entirely bypasses mechanical carbon brush friction, reducing structural wear and ensuring a quiet operational lifespan.
Multi-pole interior configuration guarantees minimal cogging torque ripple, yielding exceptionally smooth rotation tracking metrics at high speeds.
Premium copper stator windings coupled with premium Class B insulation materials allow low motor heat propagation over extended runtime cycles.
Advanced dynamic balancing algorithms eliminate internal structural vibrations, ensuring low acoustic sound decibels for sensitive salon environments.
| Model No. | Rated Speed (RPM) | No-Load Speed (RPM) | Rated Torque (N·m) | Continuous Current (A Max) | No-Load Current (A Max) | Phase-to-Phase Resistance (Ω) | No. of Poles | Back EMF Constant (V/KRPM) | Torque Constant (N·m/A) | Insulation Class |
|---|---|---|---|---|---|---|---|---|---|---|

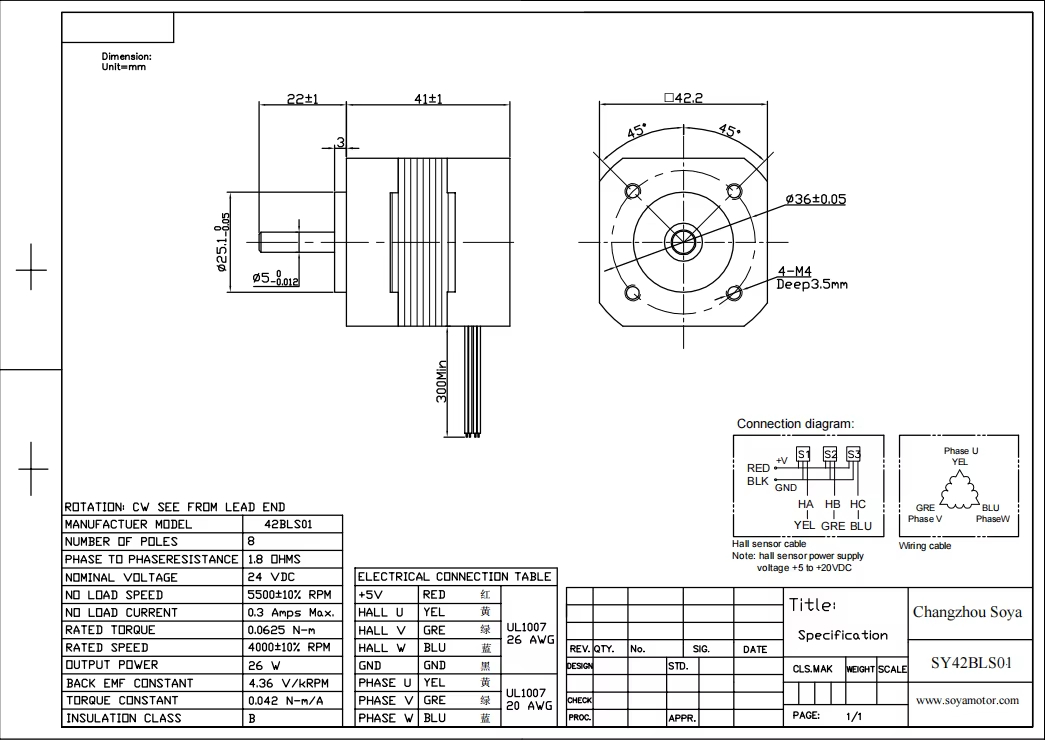

| SY42BLS01 | 4000 | 5500 | 0.0625 | - | 0.3 | 1.80 | 8 | 4.36 | 0.042 | B |
| SY42BLS02 | 4000 | 5800 | 0.125 | 0.45 | 0.45 | 0.73 | 8 | 4.1 | 0.04 | B |
| SY42BLS03 | 4000 | 5800 | 0.185 | 4.8 | 0.6 | 0.55 | 8 | 4.1 | 0.04 | B |
