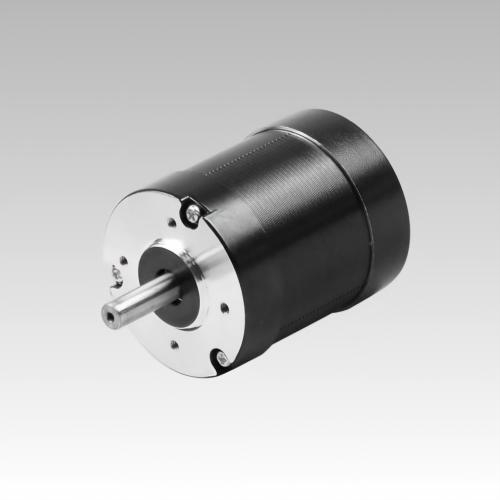

Unlock superior operational efficiency and high-torque motion smoothness with the industrial SOYA NEMA 23 (57mm) brushless DC (BLDC) motor series. Featuring a standard 57mm square frame size, this premium actuator line handles constant velocities up to a high-speed 4000 RPM rated threshold to easily master demanding mechanical loads. Specially engineered with an optimized 4-pole high-density permanent magnet circuit and premium Class B thermal insulation materials, it completely eliminates carbon brush friction and structural wear metrics. Providing robust rated torques up to a powerful 0.33N.m, it delivers a maintenance-free, quiet solution built for long-hour continuous operations.
Electronic commutation entirely bypasses mechanical carbon brush friction, reducing structural wear and ensuring an extensive, quiet operational lifespan.
Engineered multi-pole interior stator configurations provide excellent magnetic cogging smoothness, yielding ultra-stable velocity tracking metrics.
Upgraded high-force density design handles extreme acceleration shifts with ease, while built-in balancing minimizes physical structural resonance spikes.
Premium pure copper windings coupled with heavy Class B insulation allow exceptionally low motor heat propagation over extended manufacturing cycles.
| Model No. | Rated Speed (RPM) | No-Load Speed (RPM) | Rated Torque (N·m) | Continuous Current (A Max) | No-Load Current (A Max) | Phase-to-Phase Resistance (Ω) | No. of Poles | Back EMF Constant (V/KRPM) | Torque Constant (N·m/A) | Insulation Class |
|---|---|---|---|---|---|---|---|---|---|---|

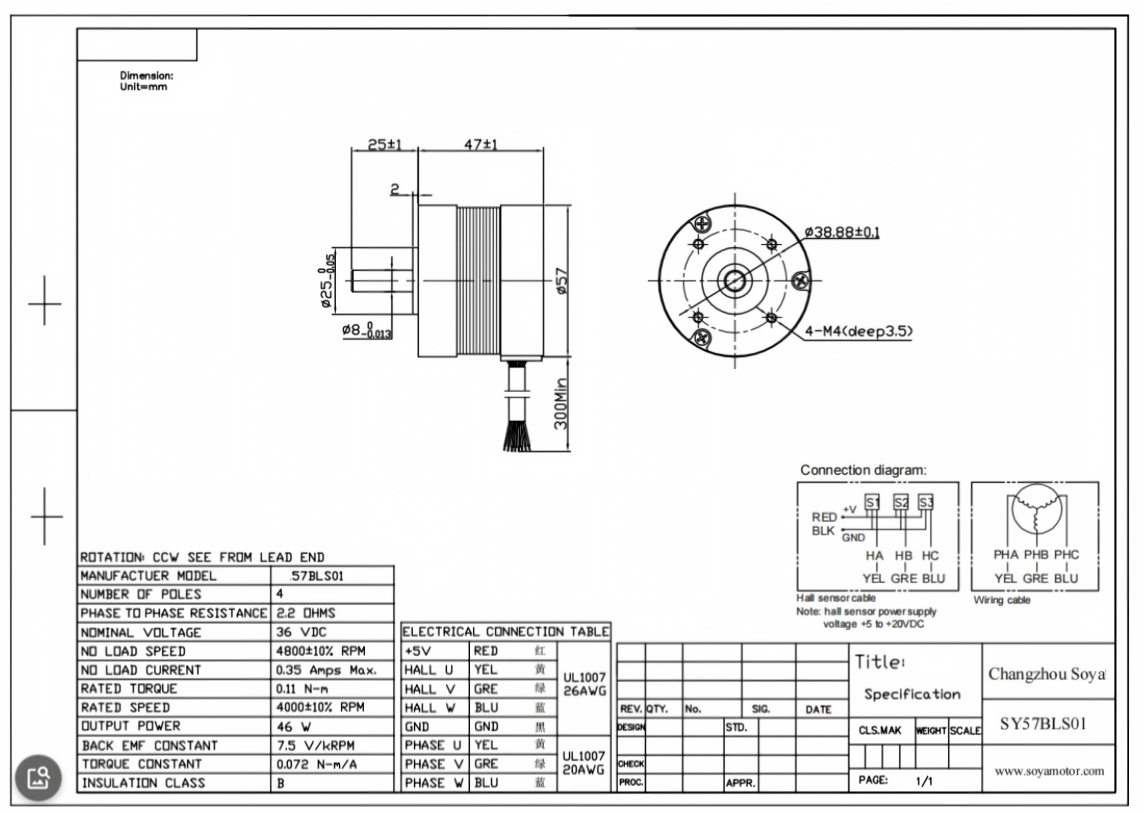

| SY57BLS01 | 4000 | 4800 | 0.11 | 2.0 | 0.35 | 2.2 | 4 | 7.5 | 0.72 | B |
| SY57BLS02 | 4000 | 4800 | 0.22 | 3.6 | 0.35 | 0.9 | 4 | 7.5 | 0.72 | B |
| SY57BLS03 | 4000 | 4800 | 0.33 | 5.5 | 0.35 | 0.43 | 4 | 7.5 | 0.72 | B |
