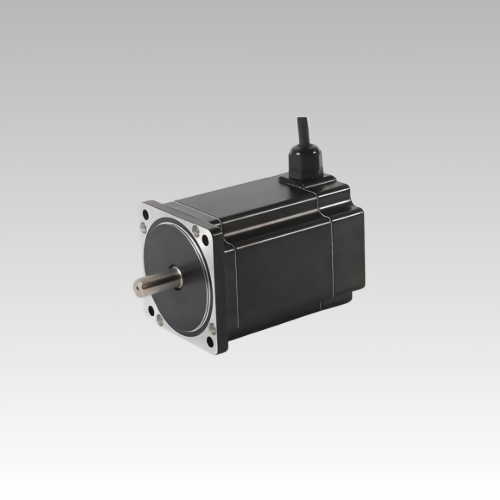

Achieve stable mechanical power and rigid moisture protection with the high-torque SOYA NEMA 23 (57HSW) series IP65 waterproof hybrid stepper motor. Encased in a fully sealed 57x57mm square structural enclosure, this versatile series delivers heavy-duty holding torque configurations up to 3.0N.m. Engineered with optimized laminations to suppress thermal output and low-speed resonance, it provides exceptional positioning tracking under volatile washdown and high-humidity production line cycles.
Complete shielding blocks micro dust ingress while ensuring strong resilience against directional low-pressure liquid spray and washdown shifts.
Offers multiple scalable motor lengths from 51mm to 112mm to seamlessly deliver targeted dynamic driving torque demands.
Engineered with a precise flat shaft construction along with moisture-proof outlet seals to prevent internal rotative humidity penetration.
Advanced magnetic configurations smoothly eliminate low-speed steps resonance to execute precise, quiet, and vibration-free driving cycles.
| Model No. | Step Angle (°) | Phase No. | IP Class | Shaft Type | Motor Length (mm) | Current (A) | Resistance (Ω) | Inductance (mH) | Holding Torque (N·m) | Rotor Inertia (g·cm²) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SY57HSW51-2804 | 1.8 | 2 | IP65 | Flat | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 230 | 0.59 |
| SY57HSW56-2804 | 1.8 | 2 | IP65 | Flat | 56 | 2.8 | 0.9 | 2.5 | 1.26 | 280 | 0.68 |
| SY57HSW76-2804 | 1.8 | 2 | IP65 | Flat | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 440 | 1.1 |
| SY57HSW82-3004 | 1.8 | 2 | IP65 | Flat | 82 | 3.0 | 1.2 | 4.0 | 2.1 | 600 | 1.2 |
| SY57HSW100-3004 | 1.8 | 2 | IP65 | Flat | 100 | 3.0 | 0.75 | 3.0 | 3.0 | 700 | 1.3 |
| SY57HSW112-3004 | 1.8 | 2 | IP65 | Flat | 112 | 3.0 | 1.6 | 7.5 | 3.0 | 800 | 1.4 |
