| Quantity: | |
|---|---|

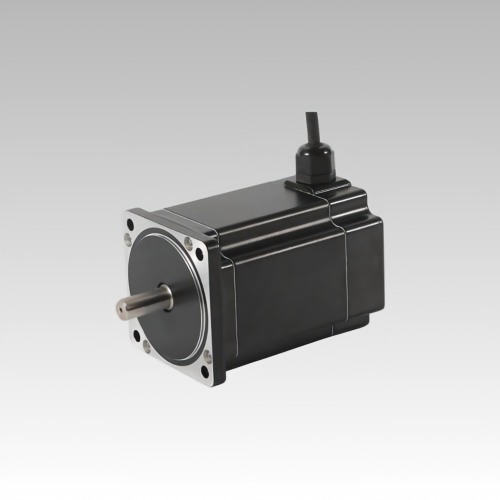

Achieve maximum precision and rigid environmental protection with the high-power SOYA NEMA 34 series IP65 waterproof closed-loop hybrid stepper motor. Featuring a fully sealed 86mm square enclosure and an impressive 8.5N.m holding torque, this advanced hybrid servo system provides total defense against dust ingress and liquid spray. By combining industrial-grade washdown reliability with real-time encoder positioning tracking, it serves as the ultimate motion drive for volatile manufacturing conditions.
Provides total protection against ingress of dust particles and reliable resistance to low-pressure water jets projected from any direction.
Integrates a heavy-duty waterproof encoder tracking feedback loop to completely eliminate step errors under volatile machine load shifts.
Features an advanced protective shaft oil seal along with tightly double-sealed laminations to thoroughly prevent inner internal humidity penetration.
Encased in a heavy wear-resistant structural housing that easily tolerates demanding chemical washdowns and high-humidity automation work.

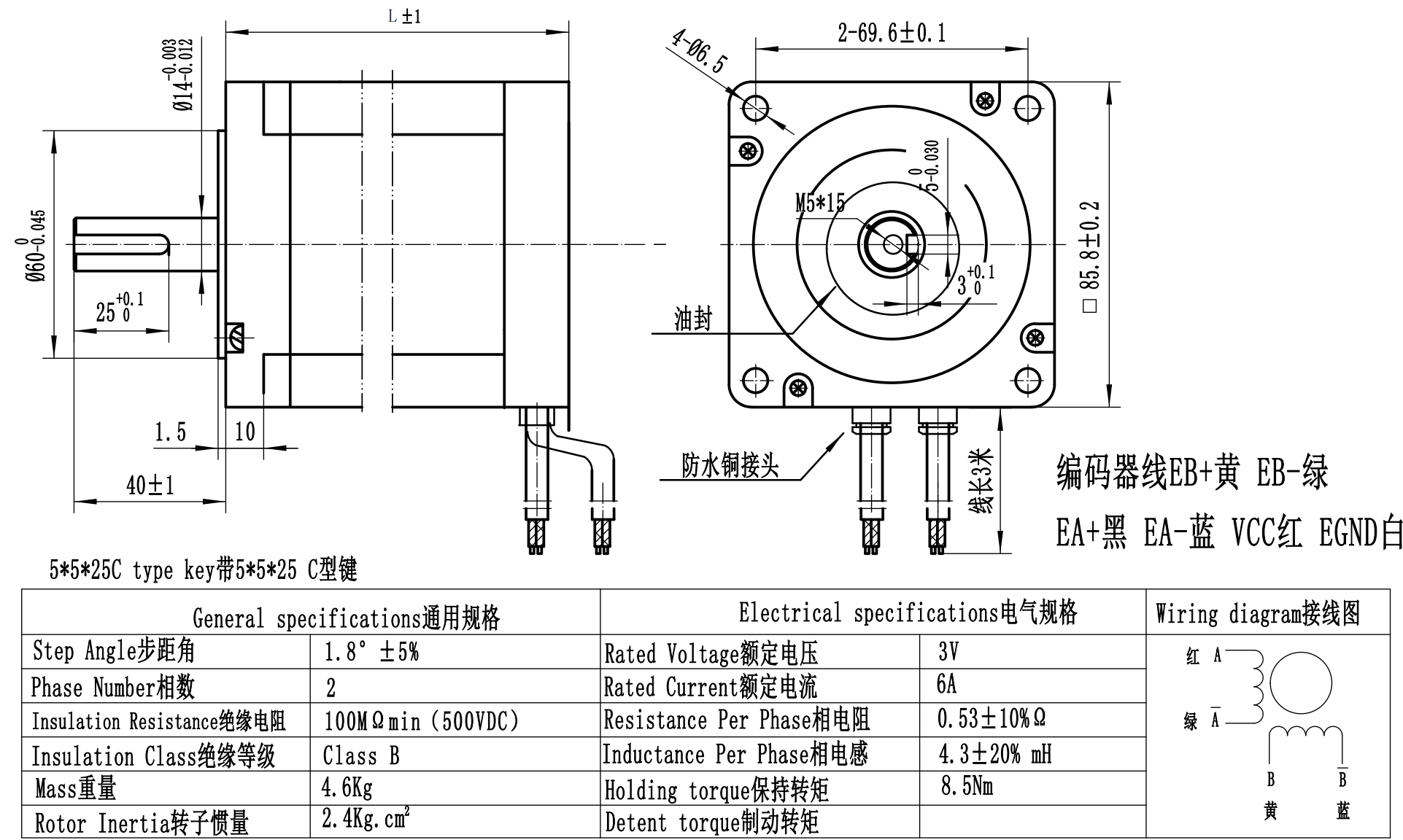

| Model Description | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Resistance /Phase (Ω) | Inductance /Phase (mH) | Holding Torque (N·m) | Motor Length (mm) | Protection Class | Mass Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| NEMA 34 Waterproof Closed-Loop | 1.8 ±5% | 3.0 | 6.0 | 0.53 ±10% | 4.3 ±20% | 8.5 | 144 | IP65 Fully Sealed | 4.6 |
