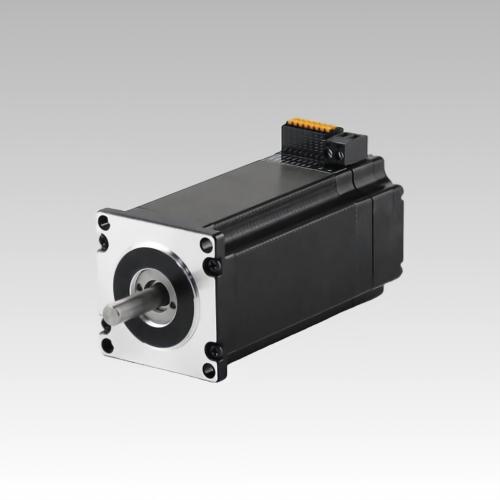

Optimize your industrial automation layout and completely eliminate external driver chassis wiring with the heavy-duty SOYA NEMA 23 series integrated stepper motor. Featuring a standard 57mm square frame size with powerful torque options up to 2.0N.m, this intelligent actuator integrates a digital drive and a 1000-line incremental optical encoder directly onto the motor. Supporting flexible dual-mode control via traditional Pulse trains or standard MODBUS-485 bus network commands, it features wide DC 24-60V voltage tolerance, multi-level software tunability, and comprehensive error guard rails to deliver reliable, zero-step-loss execution.
Onboard high-capacity digital drive bypasses complex panel rack layout wiring, drastically lowering layout clutter and signal interference paths.
Native support for traditional step pulse logic or industrial MODBUS-485 network commands to allow versatile multi-axis bus networking.
Tracks position loop variants via a built-in optical encoder tracking network, eliminating step losses even at high-speed cycles up to 3000 RPM.
Onboard monitoring guards electronics instantly against overvoltage, undervoltage, overcurrent, open windings, and positional deviation.

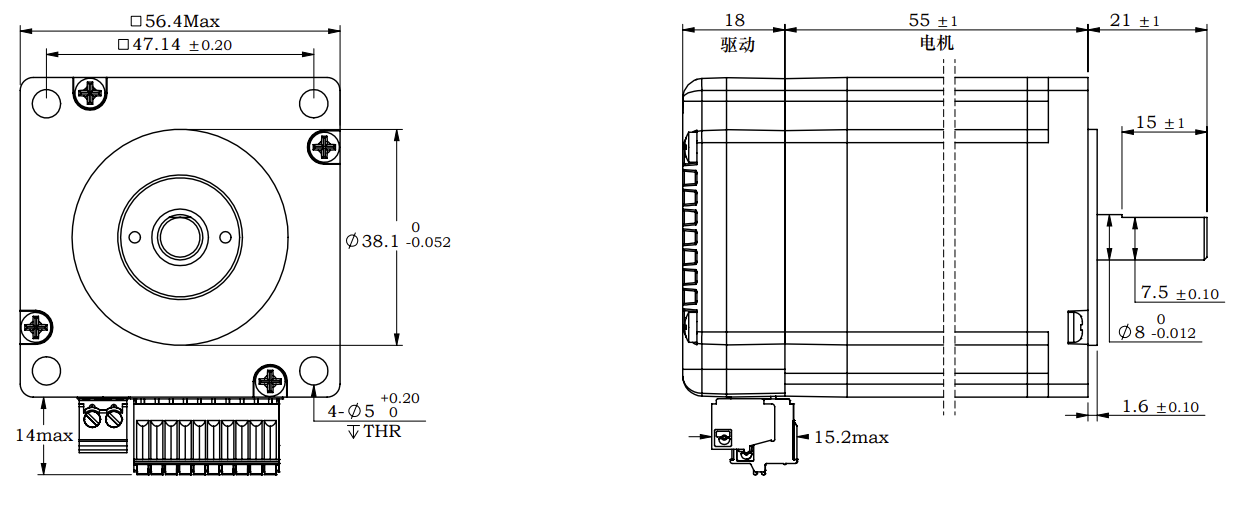

| Product Model | Motor Size | Input Voltage (VDC) | Communication Mode | Encoder Type | Length (mm) | Hold Torque (N·m) | Shaft Length (mm) | Shaft Diameter (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| SY57IGE20 | NEMA 23 | 24 - 60 | Pulses / MODBUS-485 | 1000 wire incremental | 94 | 2.0 | 21 | 8 | 1100 |
| SY57IGE12 | NEMA 23 | 24 - 60 | Pulses / MODBUS-485 | 1000 wire incremental | 74 | 1.2 | 21 | 8 | 800 |
