NEMA 34 Integrated Stepper Servo Motor with Built-in Driver

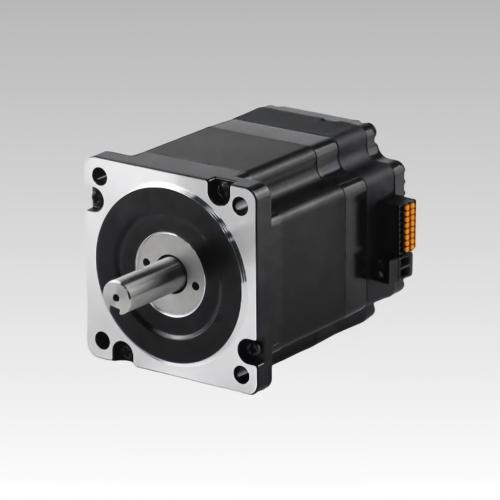

SOYA NEMA 34 (86mm) Heavy-Duty Integrated Stepper Motor with Drive Series

The SOYA NEMA 34 (86mm) integrated stepper motor series is a heavy-duty, industrial-grade intelligent motion control actuator lineup engineered by SoyaMotor. Developed for high-load industrial automation requiring massive driving forces and decentralized control panel design, this 86mm square smart motor natively integrates a high-voltage digital drive and a 1000-line incremental optical encoder directly onto the motor frame. Supporting dual control methods via traditional Pulse+Direction or standard MODBUS-485 network commands, it delivers a massive torque range up to 12.5N.m and speed capabilities up to 3000 RPM under a highly versatile 18-60VAC or 24-80VDC voltage input. Built upon our own factory floor, this advanced series completely eliminates complex external driver wiring layouts, providing zero-step-loss positioning stability and comprehensive built-in protections for heavy CNC routers, automated industrial packaging lines, plasma cutting beds, and heavy-duty industrial robotics globally.

Model:
SY86IG
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA NEMA 34 Integrated Stepper Motor Series

Optimize your heavy-duty industrial automation layouts and completely eliminate external driver panel space constraints with the flagpole SOYA NEMA 34 series integrated stepper motor. Featuring a standard 86mm square frame size with robust torque options up to a massive 12.5N.m, this intelligent actuator integrates a high-voltage digital drive and a 1000-line incremental optical encoder directly onto the motor chassis. Supporting flexible dual-mode control via traditional Pulse trains or standard MODBUS-485 bus network commands, it features wide AC 18-60V / DC 24-80V voltage tolerance, multi-level software tunability, and comprehensive error guard rails to deliver reliable, zero-step-loss heavy torque execution.

Key Performance Features

▶ Heavy Decentralized Integration

Onboard high-voltage digital drive completely bypasses external electrical cabinet layouts, drastically reducing structural wiring clutter and signal noise path lines.

▶ Smart Bus Network Control

Native support for traditional step pulse logic or industrial MODBUS-485 network communication commands to allow versatile multi-axis bus networking.

▶ High-Resolution Position Loop

Tracks position loop variants via a built-in optical encoder tracking network, eliminating step losses even under rapid acceleration peaks up to 3000 RPM.

▶ Flexible AC/DC Power Input

Supports broad ranges spanning 18-60VAC or 24-80VDC inputs to handle volatile reverse EMF voltage spikes with uncompromising dynamic torque.

Typical Applications

Heavy CNC Gantry Routers Industrial Packaging Lines Plasma Cutting MachineryCenter Heavy-Duty Linear Actuators Material Handling Automation

Technical Specifications

Product Model	Motor Size	Input Voltage	Communication Mode	Encoder Type	Length (mm)	Hold Torque (N·m)	Shaft Length (mm)	Shaft Diameter (mm)	Weight (g)
SY86IGE125	NEMA 34	18-60VAC / 24-80VDC	Pulses / MODBUS-485	1000 wire incremental	173	12.5	32	14	5600
SY86IGE85	NEMA 34	18-60VAC / 24-80VDC	Pulses / MODBUS-485	1000 wire incremental	140	8.5	32	14	4100
SY86IGE65	NEMA 34	18-60VAC / 24-80VDC	Pulses / MODBUS-485	1000 wire incremental	120	6.5	32	14	3400
SY86IGE45	NEMA 34	18-60VAC / 24-80VDC	Pulses / MODBUS-485	1000 wire incremental	102	4.5	32	14	2900

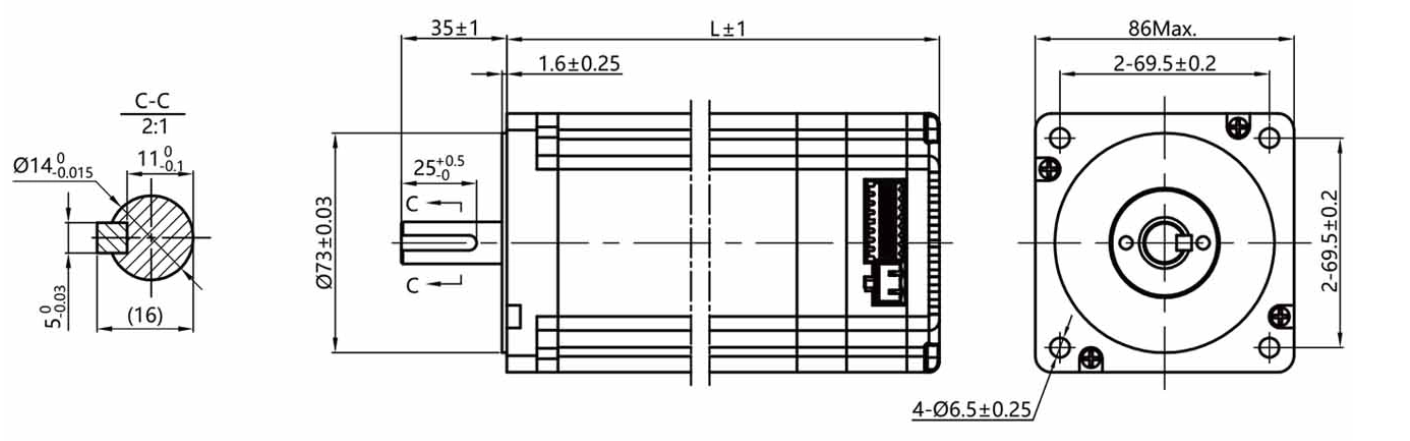

Dimension & Mechanical Drawings

nema 34 integrated stepper motor DWG
