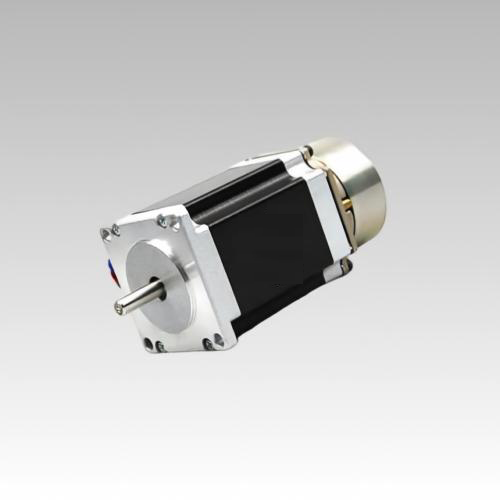

Secure ultimate positioning vertical safety and eliminate heavy load drops with the industrial SOYA NEMA 23 series hybrid stepper motor with electromagnetic brake. Featuring a standard 57mm square frame size with flexible stack lengths up to 3.2N.m, this advanced actuator integrates a heavy-duty 24V DC fail-safe holding brake. When power is removed, the friction brake engages instantly to secure the motor shaft firmly against gravity or sudden external impacts, providing robust zero-drift motion protection for volatile industrial vertical axes.
Spring-set mechanical brake locks the rotative axis automatically during power loss, providing reliable position holding without drop risks.
Heavy-duty friction pad structure grips the main shaft assembly tightly with zero backlash, entirely eliminating fine creeping position drift.
Specially engineered to perfectly manage Z-axis structural loads and linear screw setups in heavy multi-axis CNC automated workstations.
The electromagnetic brake module comes pre-assembled straight from our factory floor, requiring zero extra customer alignment operations.
| Series / Model | Step Angle (°) | Motor Torque (N·m) | Brake Type | Brake Torque (N·m) | Brake Voltage (V DC) | Brake Power (W) | Operation Logic |
|---|---|---|---|---|---|---|---|
| SY57HSBZ | 1.8 | 0.82 - 3.2 | Electromagnetic (Spring-set) | 1.5 - 2.0 | 24V | 4.5W - 15W | Power-off engaged (Releases when 24V applied) |
