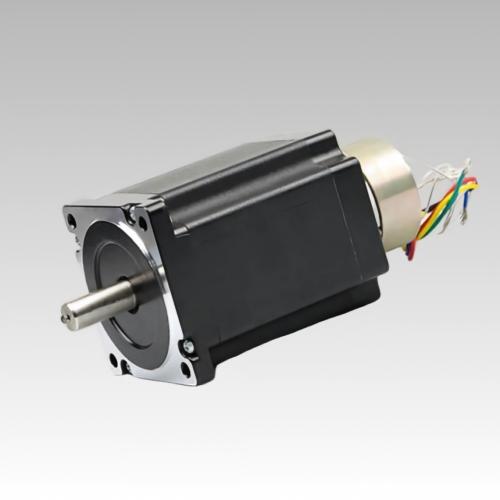

NEMA 34 (86mm) Hybrid Stepper Motor with Brake

SOYA NEMA 34 (86mm) Heavy-Duty Hybrid Stepper Motor with 24V Electromagnetic Brake Series

The SOYA NEMA 34 (86mm) heavy-duty hybrid stepper motor with electromagnetic brake series is an industrial-grade, high-torque fail-safe actuator engineered by SoyaMotor. Specially integrated with a factory-assembled power-off engaged holding brake, this 86mm square actuator series delivers maximum positioning security with motor torque options up to 13N.m when electrical power is disconnected. Operating via a 24V DC spring-set mechanical layout, the integrated heavy-duty brake system provides up to 7.0N.m of braking force to firmly lock the motor shaft against heavy vertical gravity or massive back-driving stress. Built upon our own factory floor, this robust series ensures dependable, zero-drift motion control for heavy-duty CNC router Z-axis setups, vertical industrial automation, automated storage & retrieval systems (ASRS), and large-format packaging machinery globally.

Model:
SY86HSBZ
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA NEMA 34 Heavy-Duty Stepper Motor with Brake Series

Secure maximum vertical load safety and eliminate catastrophic positioning drops with the heavy-duty SOYA NEMA 34 series hybrid stepper motor with electromagnetic brake. Featuring a standard 86mm square frame size with robust high-power outputs up to 13.0N.m, this advanced actuator integrates a massive 24V DC fail-safe holding brake. When power is lost, the spring-set brake engages instantly with up to 7.0N.m of friction force to lock the axis firmly against gravitational acceleration, providing uncompromising safety for high-load industrial vertical axes.

Key Features & Benefits

▶ Heavy-Duty Force Holding

Delivers a tremendous brake holding torque up to 7.0N.m, easily keeping heavy industrial vertical axes and heavy mechanical fixtures securely in position.

▶ High-Torque Motor Design

Optimized high-power magnetic architecture generates up to 13.0N.m of driving torque for demanding heavy-load industrial machinery automation.

▶ Uncompromising Vertical Axis Safety

Specially engineered to handle vertical loads and high-inertia lifts, fully eliminating load drop risks in multi-axis CNC machines and gantry beds.

▶ Factory-Integrated Alignment

The electromagnetic spring-set brake module comes pre-assembled from our own factory line, eliminating manual coupling adjustments for customers.

Typical Applications

Heavy-Duty CNC Routers (Z-Axis) Vertical Industrial Lifting Systems Automated Storage & Retrieval (ASRS) Industrial Robotics Large-Format 3D Printers

Technical Specifications

Series / Model	Step Angle (°)	Motor Torque (N·m)	Brake Type	Brake Torque (N·m)	Brake Voltage (V DC)	Brake Power (W)	Operation Logic
SY110HSBK	1.8	Up to 13.0	Electromagnetic (Spring-set)	4.0 - 7.0	24V	6.8W - 30W	Power-off engaged (Releases when 24V applied)

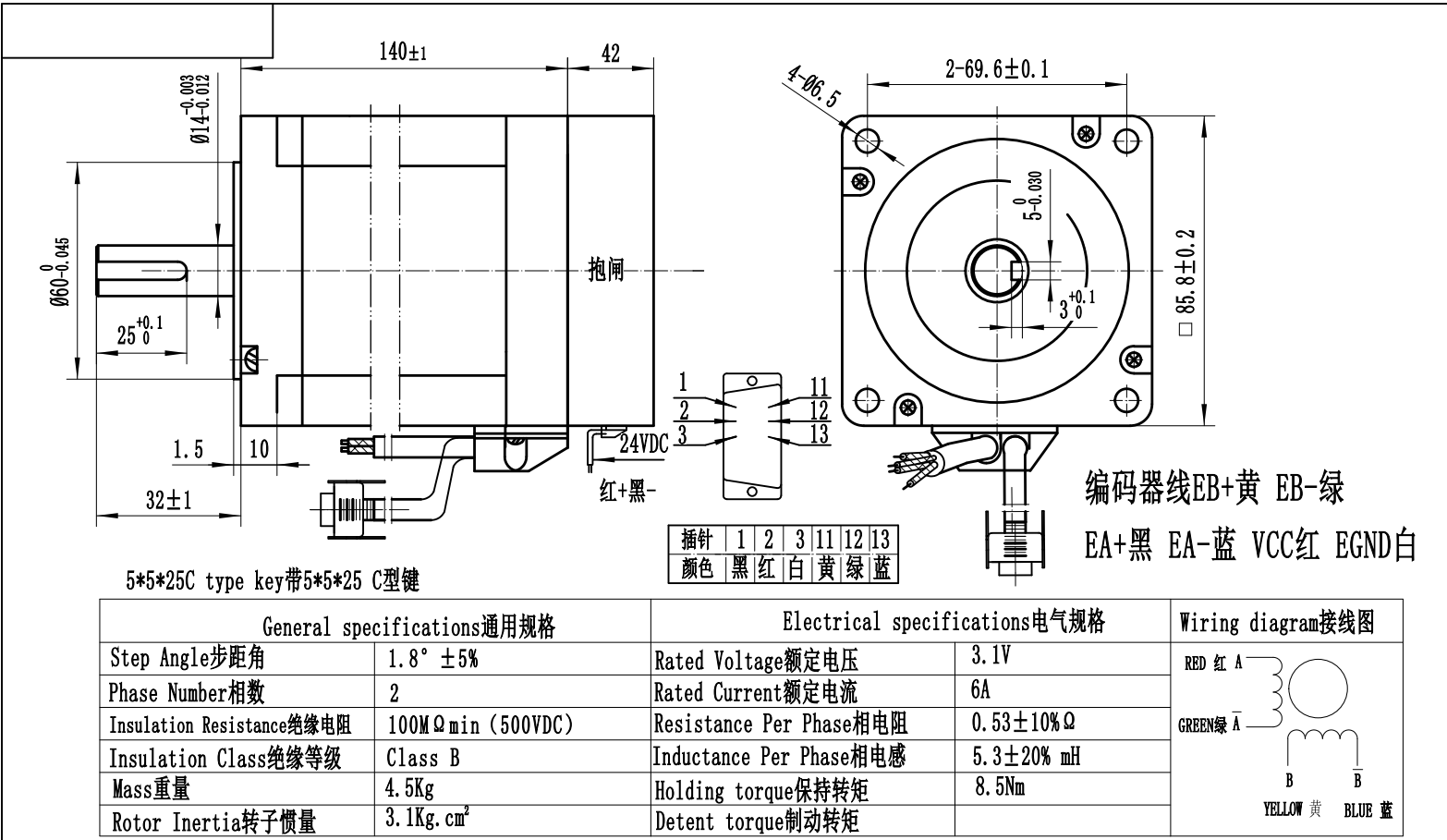

Dimension & Mechanical Drawings

86bz
