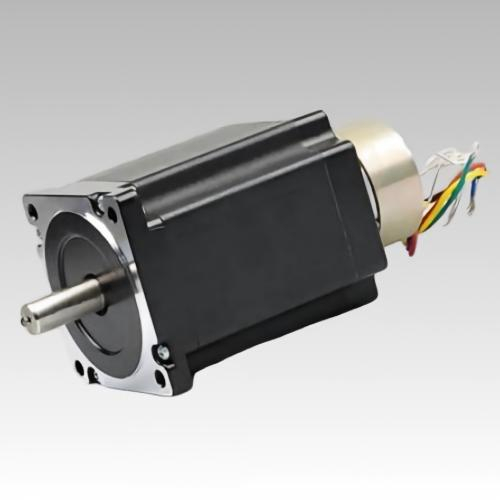

Secure ultimate mechanical safety and eliminate catastrophic vertical drops on heavy machinery with the flagship SOYA NEMA 42 series hybrid stepper motor with electromagnetic brake. Featuring a massive 110mm frame size with exceptional peak power outputs up to 20.0N.m, this heavy-duty actuator integrates an industrial 24V DC fail-safe holding brake. When power is cut, the spring-set brake engages automatically with a tremendous 10N.m+ of mechanical clamping force to lock the axis firmly against gravity, providing continuous 24/7 protection for your most demanding high-load automation lines.
Provides a tremendous brake clamping force of 10N.m+ to match the motor capacity, securing the heaviest industrial loads and vertical frames flawlessly.
Engineered with a robust 110mm frame delivering up to 20.0N.m holding torque to easily handle large-format industrial machinery requirements.
Specially optimized to completely prevent drop-downs in large Z-axis configurations, vertical conveyor setups, and high-load lifters.
Built with premium heavy-duty frame laminations and materials, fine-tuned for continuous non-stop operation in harsh automated production fields.
| Series / Model | Step Angle (°) | Motor Torque (N·m) | Brake Type | Brake Torque (N·m) | Brake Voltage (V DC) | Operation Logic | Frame Size (mm) |
|---|---|---|---|---|---|---|---|
| SY110HSBK | 1.8 | Up to 20.0 | Electromagnetic (Spring-set) | 10.0+ | 24V | Power-off engaged (Releases when 24V applied) | 110 |
