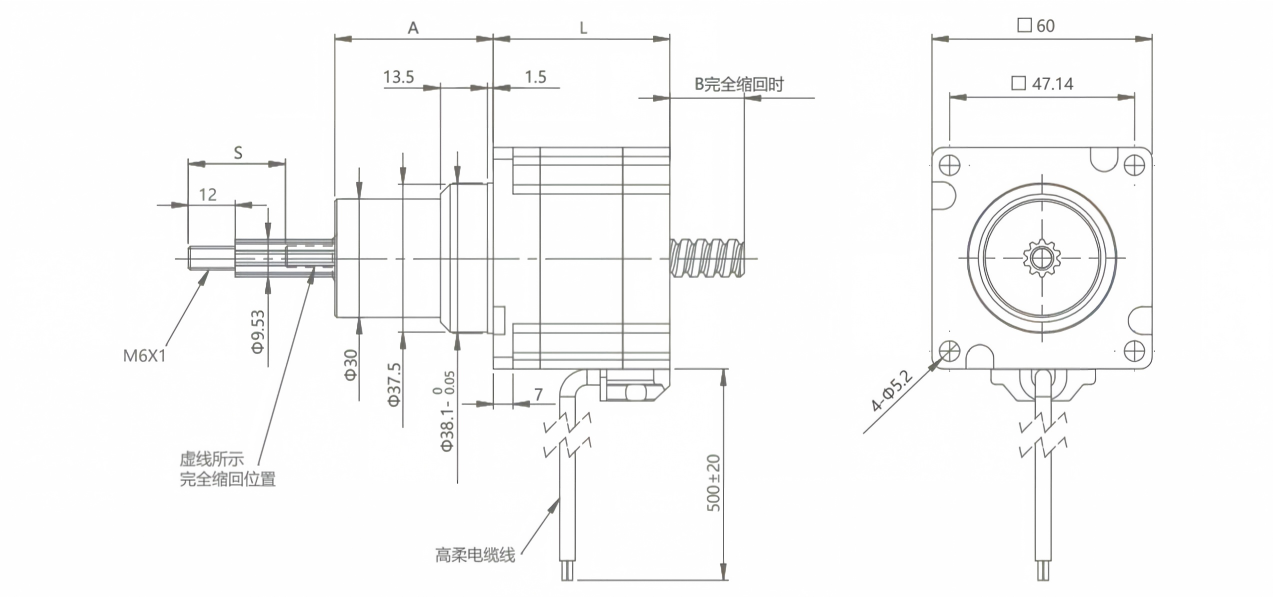

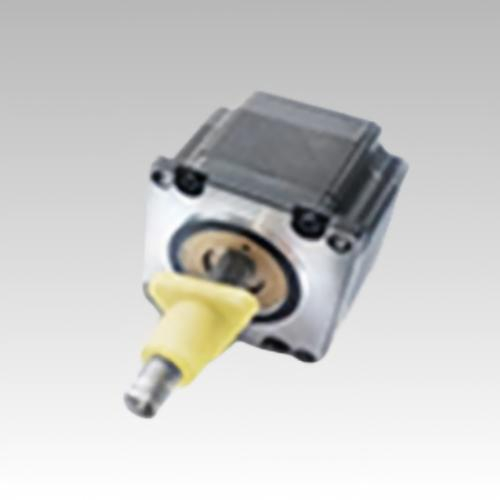

NEMA 24 (60mm) Fixed Through Shaft Type Hybrid Stepper Motor

The NEMA 24 (60mm) fixed through shaft type hybrid stepper motor is a high-torque captive linear actuator with an integrated anti-rotation spline mechanism, enabling pure linear extension and retraction without screw rotation. This self-contained design requires no external guide rails or anti-rotation devices — the screw connects directly to the load, simplifying mechanical integration. The built-in nut rotates with the rotor while the spline prevents rotation, delivering high thrust in a compact footprint. With optimal stroke lengths under 50mm, this actuator is suitable for CNC tool positioning, packaging machinery, textile equipment, laser cutting head adjustment, and industrial automation systems where high force and space efficiency are critical.

Structure Type: Fixed Through Shaft (Captive) — Screw extends/retracts linearly, does not rotate. Built-in spline prevents rotation. Best for short-stroke, space-constrained applications.
