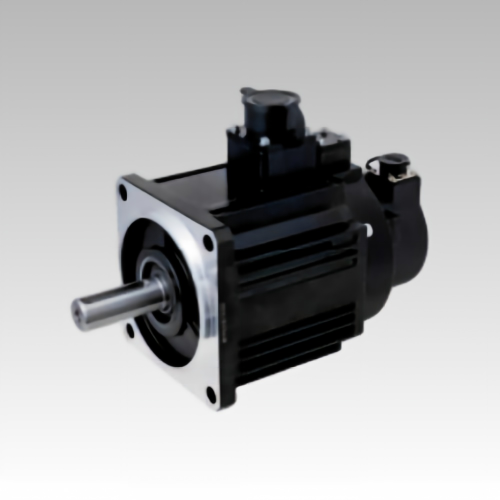

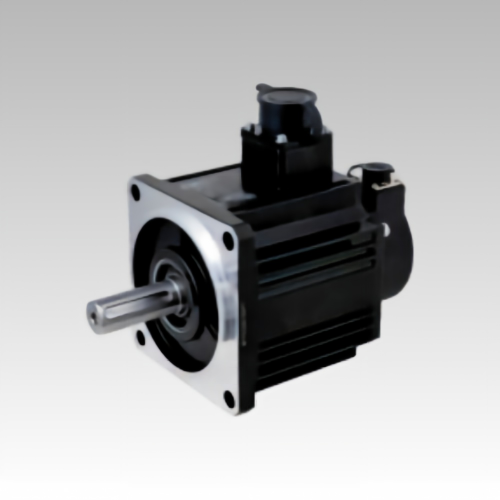

SOYA 110mm Frame Heavy-Duty AC Servo Motor Series (1.2KW / 1.8KW)

The SOYA 110mm frame AC servo motor series is a heavy-duty, high-torque precision actuator lineup engineered by SoyaMotor. Developed for demanding industrial machinery requiring exceptional power density and robust mechanical designs, this 110mm square series covers power configurations of 1200W (1.2KW) and 1800W (1.8KW), delivering powerful rated torques up to 5.73N.m and an incredible peak torque up to 17.19N.m. Built upon our own factory floor utilizing an advanced 10-pole design and a fully sealed IP65 chassis enclosure, it supports high-resolution absolute encoders to ensure precise position feedback even under heavy structural loads. This premium servo lineup ensures flawless closed-loop control feedback and rapid acceleration response for large-format CNC routers, heavy metal processing machinery, large-scale robotics, automated storage systems, and high-power laser cutting platforms globally.

Model:
SY110 SM
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA 110mm Frame Heavy-Duty AC Servo Motor Series

Unlock exceptional power density and rigid positioning tracking under heavy loads with the industrial SOYA 110mm frame AC servo motor series. Driven by an advanced 10-pole magnetic design and a robust structural build, this flagship lineup scales from 1.2KW to 1.8KW outputs to seamlessly master demanding industrial-grade forces. Natively encased in a rugged, fully dust-tight IP65 sealed chassis enclosure, it integrates high-resolution absolute encoders to deliver perfect real-time closed-loop position feedback under volatile, heavy-duty automation environments.

Key Performance Features

▶ High Position Loop Precision

Compatible with high-resolution absolute encoders to execute precise closed-loop tracking tracking, preventing position drift even under rapid load variations.

▶ Tremendous Overload Capacity

Advanced multi-pole design offers high torque density and exceptional acceleration, outputting an ultimate peak holding threshold up to 17.19 N·m.

▶ Flagship IP65 Dust & Waterproofing

Fully enclosed water-resistant structural body paired with protective mechanical sealing completely resists fine dust ingress and directional liquid washdowns.

▶ Optional Electro-Mechanical Brake

Supports factory-integrated electromagnetic spring holding brakes to lock vertical lifting axis loads safely, guaranteeing zero back-driving drop risks.

Typical Applications

Large-Format CNC Routers Heavy Metal Processing Machinery Large-Scale Industrial Robotics Automated Conveyor & Storage High-Power Laser Cutting Platforms

Technical Specifications

Model Base	Frame Size	Rated Power	Input Voltage	Rated Current	Rated Torque (N·m)	Peak Torque (N·m)	Rated/Max Speed (RPM)	Body Length (L) (Standard / Brake)	Protection Class
SY110SM-120F2	110 mm	1200 W (1.2KW)	220 V AC (1-Ph/3-Ph)	5.2 Arms	3.82	11.46	3000 / 4500	140mm (Brake: 165.5mm)	IP65
SY110SM-120F3	110 mm	1200 W (1.2KW)	380 V AC (3-Phase)	3.1 Arms	3.82	11.46	3000 / 4500	140mm (Brake: 165.5mm)	IP65
SY110SM-180F2	110 mm	1800 W (1.8KW)	220 V AC (1-Ph/3-Ph)	6.8 Arms	5.73	17.19	3000 / 4000	163mm (Brake: 188.5mm)	IP65
SY110SM-180F3	110 mm	1800 W (1.8KW)	380 V AC (3-Phase)	4.0 Arms	5.73	17.19	3000 / 4000	163mm (Brake: 188.5mm)	IP65

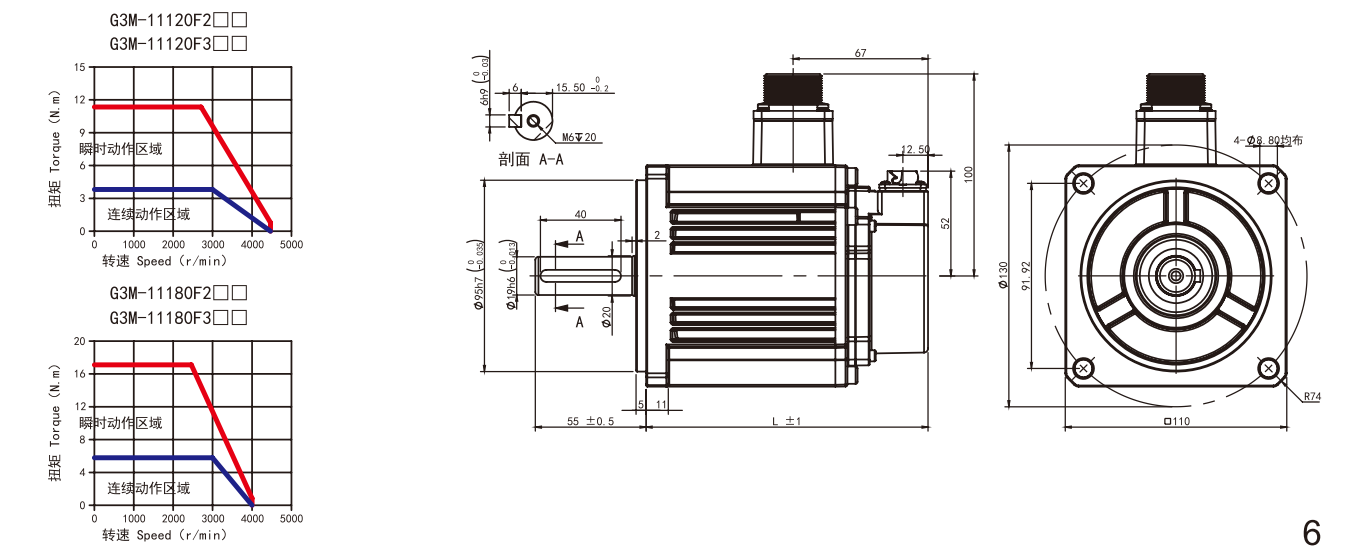

Dimension & Mechanical Drawings

SY3M-110 Series 220V 3000rpm AC Servo Motor DWG
