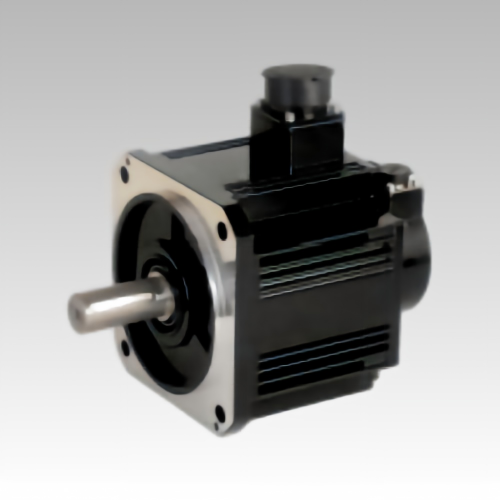

SOYA 130mm Frame High-Torque AC Servo Motor Series (850W - 2.3KW)

The SOYA 130mm frame AC servo motor series is a premium high-torque, heavy-duty industrial actuator lineup engineered by SoyaMotor. Developed for heavy industrial machinery requiring brute force, high power density, and continuous duty cycles, this 130mm square series spans power configurations from 850W up to a massive 2300W (2.3KW). It delivers stable rated torques up to 14.64N.m and an incredible peak clamping torque up to 43.92N.m across versatile 220V and 380V AC networks. Built upon our own factory floor utilizing an advanced 10-pole design and a fully sealed IP65 chassis enclosure, it supports high-resolution absolute encoders to provide perfect real-time closed-loop position tracking under heavy structural loads. This flagpole servo lineup ensures flawless acceleration control and long-term stability for heavy-duty CNC milling centers, large industrial packaging automated lines, heavy robotics joint actuation, and high-load factory automation lifters globally.

Model:
SY130SM
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

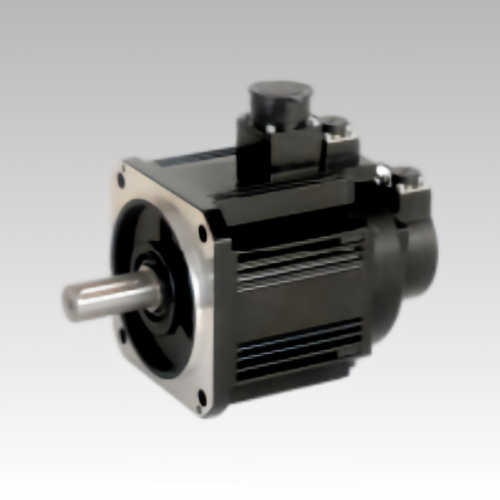

SOYA 130mm Frame High-Torque AC Servo Motor Series

Unlock exceptional mechanical driving force and rigid position tracking loop smoothness with the industrial SOYA 130mm frame high-torque AC servo motor series. Driven by an advanced 10-pole magnetic design and a robust structural build, this flagship heavy-duty lineup scales smoothly from 850W up to a massive 2.3KW output capacity to master demanding industrial-grade forces. Natively encased in a rugged, fully dust-tight IP65 sealed structural shell, it supports high-resolution absolute encoders to deliver perfect real-time closed-loop position feedback under volatile, heavy-duty automation environments.

Key Performance Features

▶ Ultra-Precision Position Feedback

Compatible with high-resolution absolute encoders to compute exact real-time closed-loop position loops, entirely preventing steps or position loss drift.

▶ Rigid Heavy Overload Capacity

Advanced magnetic circuit configurations yield massive rated forces up to 14.64N.m, enabling powerful peak dynamic thresholds up to a massive 43.92 N·m.

▶ Flagship IP65 Dust & Waterproofing

Fully enclosed water-resistant structural body paired with protective mechanical sealing completely resists fine dust ingress and directional liquid washdowns.

▶ Optional Electro-Mechanical Brake

Supports factory-integrated electromagnetic spring holding brakes to lock vertical lifting axis loads safely, guaranteeing zero back-driving drop risks.

Typical Applications

Heavy-Duty CNC Machining Centers Large Industrial Packaging Lines Large-Scale Robotics Joint Actuation Automated Factory Lifters & ASRS Heavy Mechanical Drive Units

Technical Specifications

Model Base	Frame Size	Rated Power	Input Voltage	Rated Current	Rated Torque (N·m)	Peak Torque (N·m)	Rated/Max Speed (RPM)	Body Length (L) (Standard / Brake)	Protection Class
SY130SM-110D2	130 mm	1100 W (1.1KW)	220 V AC	6.0 Arms	5.25	15.75	2000 / 4000	130mm (Brake: 155.5mm)	IP65
SY130SM-085C3	130 mm	850 W	380 V AC	3.1 Arms	5.41	16.23	1500 / 3000	130mm (Brake: 155.5mm)	IP65
SY130SM-130C2	130 mm	1300 W (1.3KW)	220 V AC	7.7 Arms	8.28	24.84	1500 / 3000	146mm (Brake: 171.5mm)	IP65
SY130SM-130C3	130 mm	1300 W (1.3KW)	380 V AC	5.1 Arms	8.28	24.84	1500 / 3000	146mm (Brake: 171.5mm)	IP65
SY130SM-180C2	130 mm	1800 W (1.8KW)	220 V AC	9.8 Arms	11.46	34.38	1500 / 3000	164mm (Brake: 189.5mm)	IP65
SY130SM-180C3	130 mm	1800 W (1.8KW)	380 V AC	6.3 Arms	11.46	34.38	1500 / 3000	164mm (Brake: 189.5mm)	IP65
SY130SM-230C2	130 mm	2300 W (2.3KW)	220 V AC	12.4 Arms	14.64	43.92	1500 / 3000	186mm (Brake: 211.5mm)	IP65
SY130SM-230C3	130 mm	2300 W (2.3KW)	380 V AC	8.5 Arms	14.64	43.92	1500 / 3000	186mm (Brake: 211.5mm)	IP65

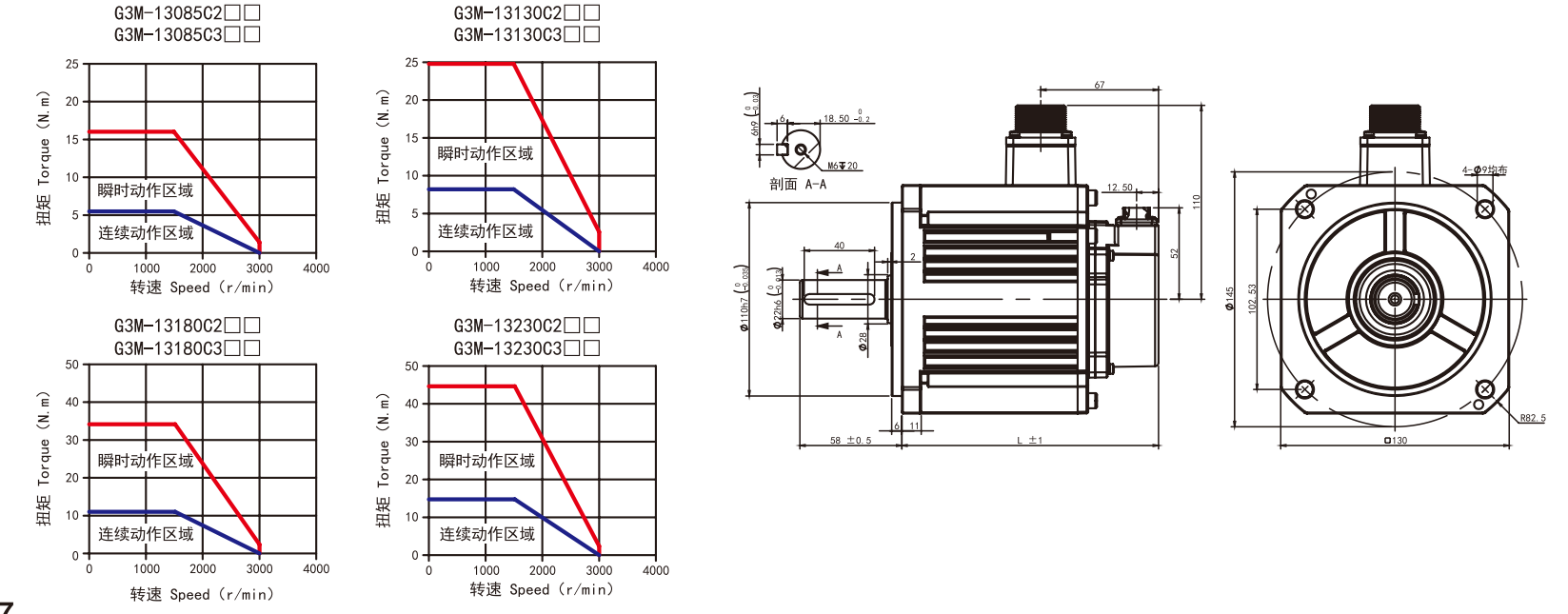

Dimension & Mechanical Drawings

SY3M-130 Series 220V 3000rpm AC Servo Motor DWG
