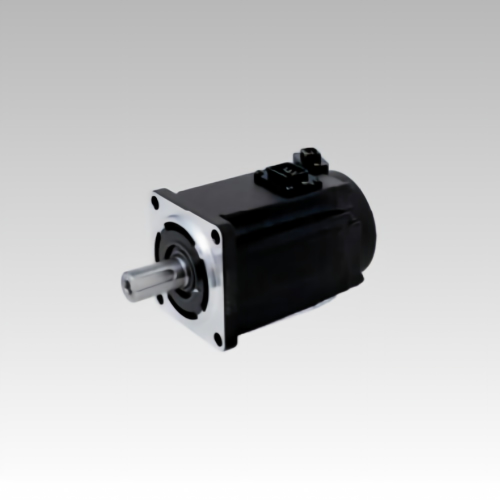

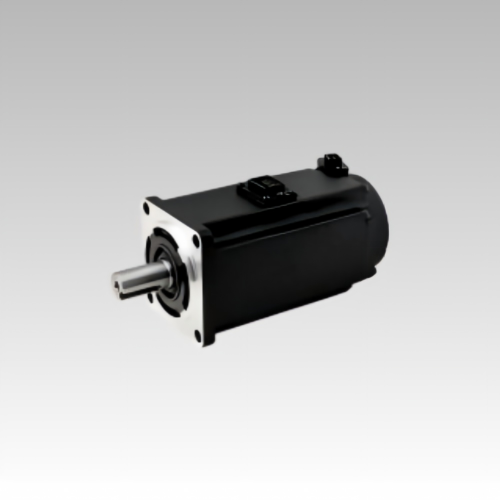

SOYA 60mm Frame High-Performance AC Servo Motor Series (200W / 400W / 600W)

The SOYA 60mm frame AC servo motor series is an industrial-grade, high-performance precision actuator lineup engineered by SoyaMotor. Developed for high-speed dynamic response and ultra-reliable positioning accuracy, this 60mm square series covers power configurations ranging from 200W to 600W (delivering rated torques from 0.64N.m up to 1.91N.m) under a standard 220V AC power input. Built upon our own factory floor utilizing an advanced 10-pole magnetic configuration and a fully sealed IP65 chassis enclosure, it can be equipped with a 17-bit or 23-bit high-resolution absolute encoder to eliminate tracking drift entirely. This premium servo lineup ensures flawless closed-loop control feedback and exceptional high-speed performance up to 8000 RPM for CNC axis control, high-speed joint robotics, 3C electronics manufacturing, and semiconductor automation globally.

Model:
SY60SM
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA 60mm Frame High-Performance AC Servo Motor Series

Unlock exceptional dynamic response and premier positioning accuracy with the industrial SOYA 60mm frame AC servo motor series. Driven by an advanced 10-pole high-density magnetic architecture, this versatile lineup scales from 200W to 600W outputs to meet demanding mechanical loads. Natively encased in a rugged, fully dust-tight IP65 sealed structural shell, it supports high-resolution 17-bit or 23-bit absolute encoders to provide perfect real-time closed-loop position feedback under volatile high-speed manufacturing environments.

Key Performance Features

▶ Ultra-High Resolution Feedback

Compatible with 17-bit or 23-bit absolute encoders to compute exact real-time closed-loop position loops, entirely preventing steps or position loss drift.

▶ Total Dust & Jet Waterproofing

Rugged IP65 fully sealed chassis architecture thoroughly blocks fine airborne particles and resists low-pressure liquid spray jets from any physical angle.

▶ High-Speed Dynamic Acceleration

Engineered multi-pole stator designs execute flawless torque smoothness, enabling extreme rotative velocity thresholds up to 8000 RPM.

▶ Optional Fail-Safe Axis Brake

Supports integrated mechanical spring holding brakes to lock vertical lifting axis loads safely, ensuring zero back-driving during sudden power shutdowns.

Typical Applications

CNC Axis Control Robotics Joint Actuation 3C Electronics Manufacturing Semiconductor Wafer Handling High-Speed Textile Weaving

Technical Specifications

Model Base	Frame Size	Rated Power	Rated Current	Rated Torque (N·m)	Max Torque (N·m)	Max Speed (RPM)	Encoder Resolution	Protection Class
SY60SM-020	60 mm	200 W	1.7 A	0.64	1.92	6000	17-bit / 23-bit Absolute	IP65
SY60SM-040	60 mm	400 W	2.5 A	1.27	3.81	6000	17-bit / 23-bit Absolute	IP65
SY60SM-060	60 mm	600 W	3.5 A	1.91	5.73	8000	17-bit / 23-bit Absolute	IP65

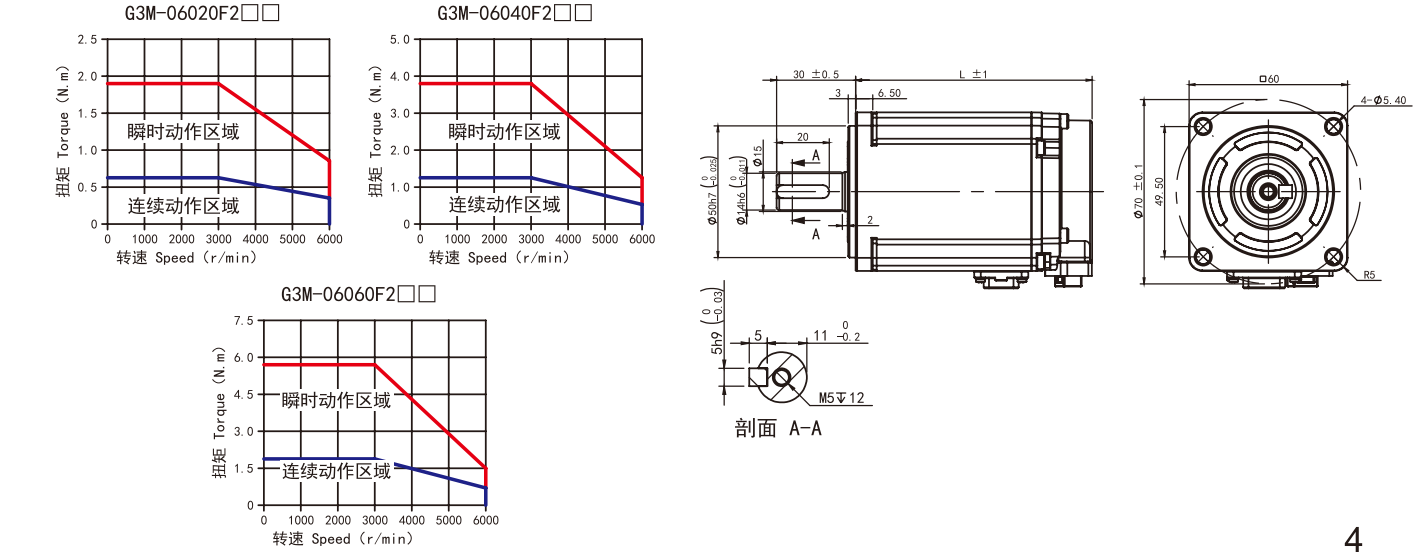

Dimension & Mechanical Drawings

SY3M-60 Series 100W 400W 220V 3000rpm AC Servo Motor DWG
