SOYA 80mm Frame High-Performance AC Servo Motor Series (750W / 1000W)

The SOYA 80mm frame AC servo motor series is an industrial-grade, heavy-duty precision actuator lineup engineered by SoyaMotor. Developed for high-torque motion control and long-term stability in demanding CNC and automation applications, this 80mm square series covers power configurations of 750W and 1000W (delivering powerful rated torques up to 3.18N.m and peak torques up to 9.54N.m) under a standard 220V AC power input. Built upon our own factory floor utilizing an advanced 10-pole magnetic design and a fully sealed IP65 chassis enclosure, it can be equipped with a 17-bit or 23-bit high-resolution absolute encoder to eliminate positioning drift entirely. This premium servo lineup ensures flawless closed-loop control feedback, rapid acceleration response, and strong overload capability for heavy CNC axes, industrial robotics joint actuation, high-speed conveying packaging machinery, and semiconductor handling systems globally.

Model:
SY80SM
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

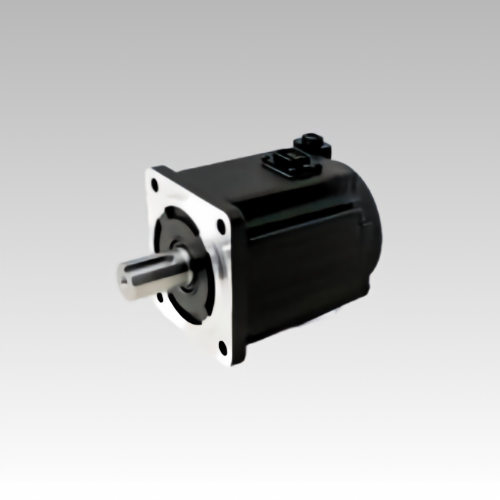

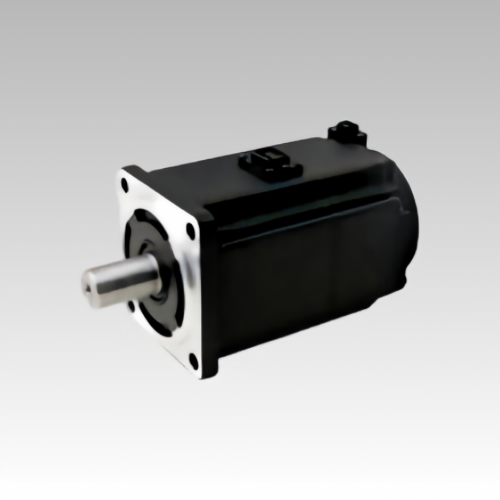

SOYA 80mm Frame High-Performance AC Servo Motor Series

Unlock exceptional dynamic response and premier high-torque positioning accuracy with the industrial SOYA 80mm frame AC servo motor series. Driven by an advanced 10-pole magnetic circuit optimization and high-temperature resistant permanent magnets, this high-capacity lineup scales from 750W to 1000W (1KW) outputs to handle demanding heavy mechanical loads. Natively encased in a rugged, fully dust-tight IP65 sealed structural shell, it supports high-resolution 17-bit or 23-bit absolute encoders to provide perfect real-time closed-loop position feedback under volatile, heavy-duty industrial automation environments.

Key Performance Features

▶ Ultra-High Resolution Feedback

Compatible with 17-bit or 23-bit absolute encoders to compute exact real-time closed-loop position loops, entirely preventing steps or position loss drift.

▶ Strong Overload Capacity

Advanced magnetic configurations smoothly eliminate operational cogging torque, enabling powerful peak holding thresholds up to a massive 9.54 N.m.

▶ Total Dust & Jet Waterproofing

Rugged IP65 fully sealed chassis architecture thoroughly blocks fine airborne particles and resists low-pressure liquid spray jets from any physical angle.

▶ Low Vibration & Low Heat

Premium high-temperature permanent magnet materials reduce heat propagation, ensuring ultra-smooth, vibration-free motion control under 45dB.

Typical Applications

CNC Machines (Heavy Positioning) Industrial Robotics Joint High-Speed Conveying Systems Semiconductor Precision Positioning Laser Processing Centers

Technical Specifications

Model Base	Frame Size	Rated Power	Rated Current	Rated Torque (N·m)	Max Torque (N·m)	Max Speed (RPM)	Encoder Resolution	Protection Class
SY80SM-075	80 mm	750 W	4.0 A	2.39	7.17	6000	17-bit / 23-bit Absolute	IP65
SY80SM-100	80 mm	1000 W (1KW)	4.5 A	3.18	9.54	6000	17-bit / 23-bit Absolute	IP65

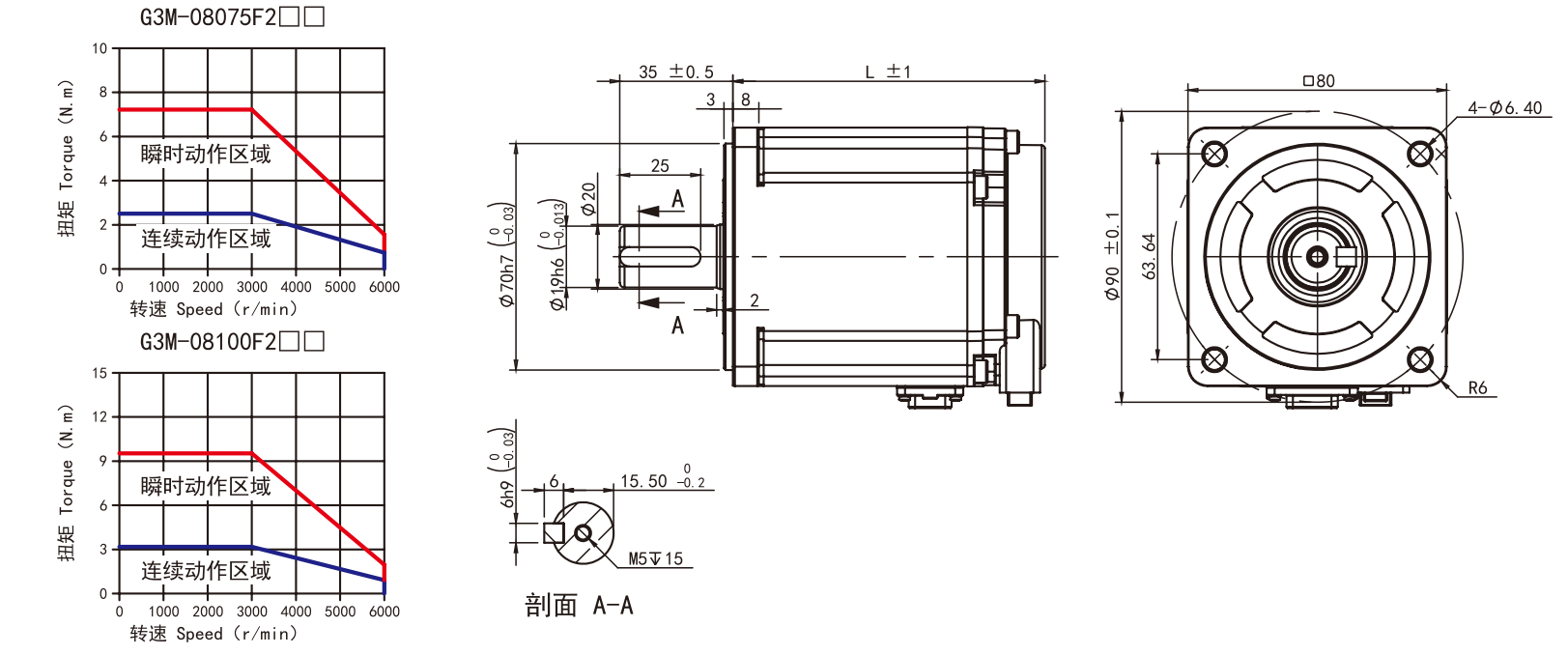

Dimension & Mechanical Drawings

SY3M-80 Series 220V 3000rpm AC Servo Motor DWG
