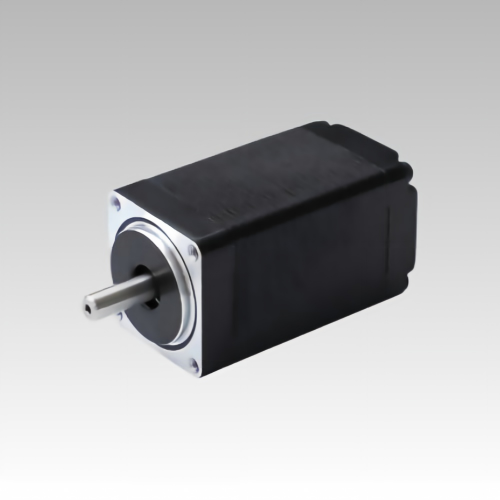

soya nema 11 28mm 1.8 degree open loop hybrid stepper motor

SOYA NEMA 11 (28mm) High-Torque Open-Loop Stepper Motor Series

The SOYA NEMA 11 (28mm) is an industrial-grade 2-phase open-loop hybrid stepper motor series featuring a standard 1.8° step angle. Engineered by SoyaMotor to balance compact size constraints with reliable mechanical motion, this series utilizes high-grade magnetic cores to generate premium holding torque. Available in 32mm, 45mm, and 51mm stack lengths with versatile 4-lead and 6-lead configurations, it is completely optimized for precision 3D printers, medical instruments, automated dispensing systems, and robotics.

Model:
SY28HS
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA NEMA 11 (28mm) Open-Loop Hybrid Stepper Motor Series

Empower your compact motion frameworks with the precision-engineered SOYA NEMA 11 series hybrid stepper motor. Featuring a miniature 28mm square frame size and a standard 1.8° step angle, this open-loop actuator balances tight space restrictions with reliable torque delivery. Engineered entirely on our own factory floor from high-grade silicon cores and premium bearings, it suppresses electrical heat and mechanical noise to ensure outstanding continuous reliability.

Key Features & Benefits

⚡ Miniature High-Torque Build Delivers robust mechanical holding torque up to 950 g.cm within a compact 28mm framework, providing ideal positioning force for space-constrained mechanisms.

⚙️ 4-Lead & 6-Lead Flexibility Configured in standard 4-lead or 6-lead wiring options to perfectly match different industrial stepper drivers and electrical coil wiring requirements.

Industrial Grade Rigidity Manufactured directly on our own shop floor from high-silicon stamping steel and premium bearings to suppress mechanical vibration and electrical noise.

Flexible OEM Customization Fully customizable configurations available upon request, including custom shaft lengths, specialized D-flats, specific lead wire pinouts, and custom connectors.

Typical Applications

3D Printers CNC Routers Medical Devices Laboratory Automation Dispensing Machines Pick-and-Place Systems Textile Machinery Robotics

Technical Specifications

Model No.	Step Angle (°)	Motor Length (mm)	Current/ Phase (A)	Resistance/ Phase (Ω)	Inductance/ Phase (mH)	Holding Torque (g.cm)	Leads (No.)	Rotor Inertia (g.cm²)	Mass (Kg)
SY28HS32-0956	1.8	32	0.95	2.8	0.8	430	6	9	0.11
SY28HS32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
SY28HS45-0956	1.8	45	0.95	3.4	1.2	750	6	12	0.14
SY28HS45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
SY28HS51-0956	1.8	51	0.95	4.6	1.8	900	6	18	0.2

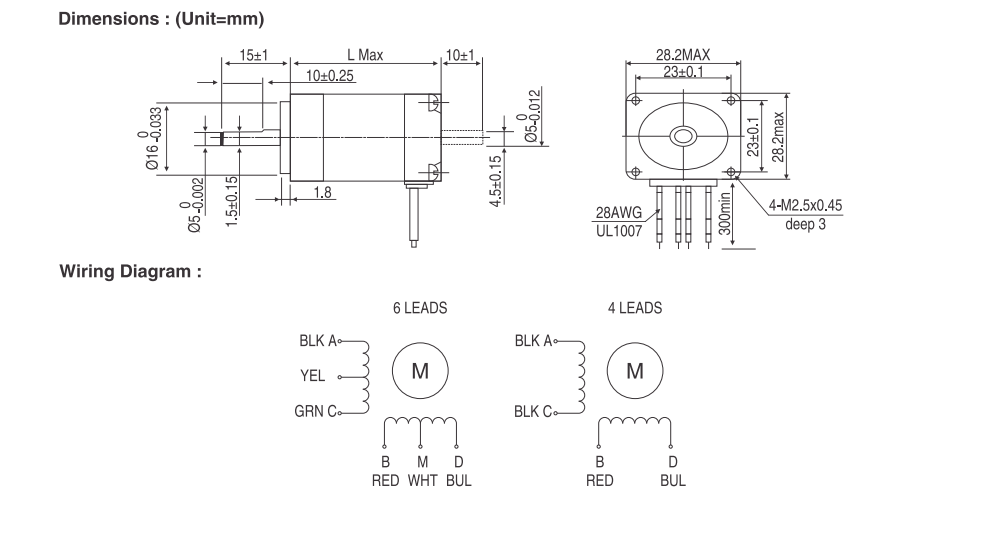

Dimension & Mechanical Drawings

NEMA 11 (28mm) Open Loop Stepper Motor DWG
