SOYA NEMA 23 (57mm) High-Torque Open-Loop Stepper Motor Series

The SOYA NEMA 23 (57mm) is an industrial-grade 2-phase open-loop hybrid stepper motor series featuring the industry-standard 1.8° step angle. Engineered by SoyaMotor to deliver robust power and steady mechanical motion, this series incorporates premium lamination materials to generate a high holding torque output. Available in a highly scalable length lineup with versatile current options, it is completely optimized for precision CNC routers, automated engraving tables, textile machinery, and heavy industrial automation layouts.

Model:
SY57HS
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA NEMA 23 (57mm) 1.8° High-Torque Open-Loop Stepper Motor Series

Empower your heavy-duty mechanical layouts with the robust SOYA NEMA 23 series 1.8° hybrid stepper motor. Designed with a standard 57mm square frame size, this open-loop actuator balances outstanding power density with continuous mechanical tracking stability. Engineered entirely on our own factory floor from high-grade silicon core laminations and premium bearings, it suppresses low-frequency vibration and yields maximum dynamic torque across long automation cycles.

Key Features & Benefits

⚡ Exceptional Industrial Torque Optimized magnetic internal geometries multiply holding and dynamic torque parameters, preventing positioning dropouts under heavy cutting or pulling forces.

⚙️ 4-Lead & 6-Lead Universal Wiring Available in standard 4-lead and 6-lead configurations, ensuring perfect electrical adaptation with diverse microstep drivers and control networks.

Industrial-Grade Thermal Control Constructed using low-loss magnetic alloys and oversized bearings to drastically mitigate heat generation during continuous, multi-shift plant workloads.

Flexible Structural Customization Our engineering team delivers flexible mechanical customizations, including special D-flat cuts, keyed shaft profiles, custom wire lengths, and integrated connector housings.

Typical Applications

Industrial CNC Routers Textile & Weaving Machinery Automated Lab Conveyors Packaging Materials Feeders Laser Cutting Mechanical Gantry Heavy Automated Labelers

Technical Specifications

Model No.	Step Angle (°)	Motor Length (mm)	Current/ Phase (A)	Resistance/ Phase (Ω)	Inductance/ Phase (mH)	Holding Torque (g.cm)	Leads (No.)	Rotor Inertia (g.cm²)	Mass (Kg)
SY57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	230	0.59
SY57HS51-2006	1.8	51	2	1.65	2.2	0.72	6	230	0.59
SY57HS56-1006	1.8	56	1	7.4	10	0.9	6	280	0.68
SY57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	280	0.68
SY57HS56-3006	1.8	56	3	0.75	1.1	0.9	6	280	0.68
SY57HS56-2804	1.8	56	2.8	0.9	2.5	1.26	4	280	0.68
SY57HS76-1006	1.8	76	1	8.6	14	1.35	6	440	1.1
SY57HS76-2006	1.8	76	2	2.25	3.6	1.35	6	440	1.1
SY57HS76-3006	1.8	76	3	1	1.6	1.35	6	440	1.1
SY57HS76-2804	1.8	76	2.8	1.13	3.6	1.89	4	440	1.1
SY57HS82-3004	1.8	82	3.0	1.2	4	2.2	4	600	1.2
SY57HS82-5004	1.8	82	5	0.6	1.5	2.2	4	600	1.2
SY57HS98-4004	1.8	98	4.0	1.6	6.8	2.5	4	800	1.4
SY57HS111-4004	1.8	111	4.2	0.9	3.8	3.0	4	800	1.4

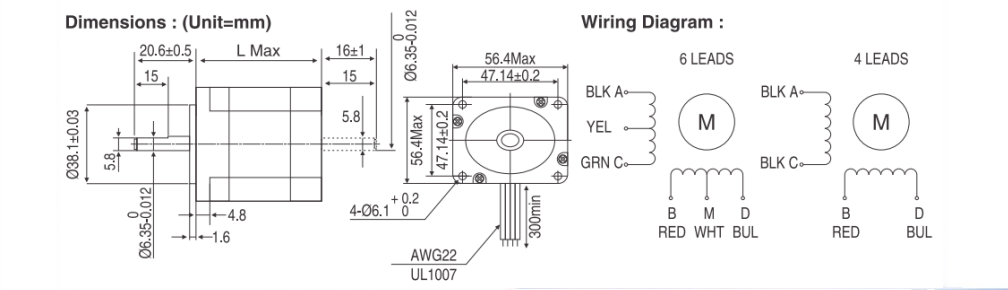

Dimension & Mechanical Drawings

NEMA 23 (57mm) Open Loop Stepper Motor DWG
