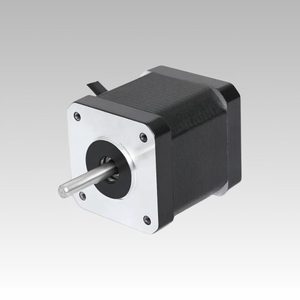

soya nema 24 60mm open loop hybrid stepper motor

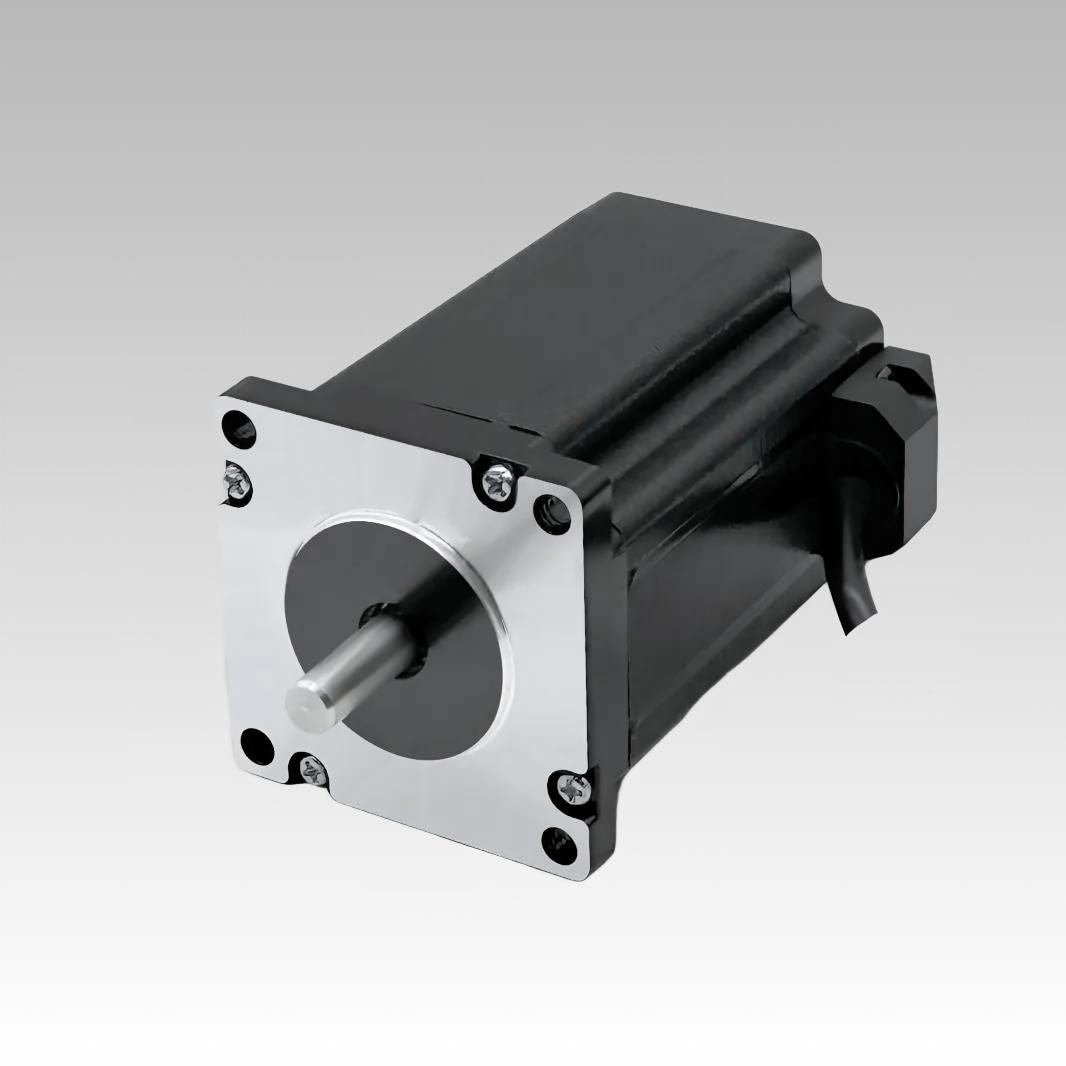

SOYA NEMA 24 (60mm) High-Torque Open-Loop Stepper Motor Series

The SOYA NEMA 24 (60mm) is an enhanced high-torque 2-phase open-loop hybrid stepper motor series engineered by SoyaMotor. Designed within a 60mm square framework to bridge the gap between NEMA 23 and NEMA 34, this series yields significantly greater torque density and rotational stability without expanding system spacing excessively. Built from premium high-silicon core laminations, it provides robust holding forces perfectly tailored for heavy-load conveyors, packaging equipment, multi-axis automated machines, and demanding CNC gantry mechanisms.

Model:
SY60HS
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA NEMA 24 (60mm) High-Torque Open-Loop Stepper Motor Series

Optimize your high-load mechanical frameworks with the enhanced SOYA NEMA 24 series 1.8° hybrid stepper motor. Designed within a specialized 60mm square frame size to bridge the gap between NEMA 23 and NEMA 34, this open-loop actuator outputs exceptional torque density and mechanical rigidity without unnecessarily increasing system space. Engineered directly on our own shop floor, it features standard 8-lead wiring to provide ultimate flexibility for series or parallel coil configurations.

Key Features & Benefits

⚡ Superior Torque Density The unique 60mm profile amplifies dynamic torque and holding force over common NEMA 23 models, ensuring heavy angular acceleration under high industrial loads.

⚙️ 8-Lead Wiring Versatility Configured with 8 premium industrial lead wires, allowing engineers to freely wire the motor in series, parallel, or unipolar configurations to perfectly match different drivers.

Industrial-Grade Rugidity Manufactured from high-silicon core laminations and oversized bearings to drastically suppress electrical heat output and mechanic resonance during plant shifts.

Factory-Direct Customizations Our direct OEM production line supports customized output shafts (D-cuts, keyways, round), modified lead wire lengths, and custom electronic connectors.

Typical Applications

Heavy-Load Conveyor Belts Multi-Axis Packaging Machinery Industrial Labeling Equipment Medium CNC Milling Gantries Automated Material Feeders Textile Loom Actuators

Technical Specifications

Model No.	Step Angle (°)	Motor Length (mm)	Current/ Phase (A)	Resistance/ Phase (Ω)	Inductance/ Phase (mH)	Holding Torque (g.cm)	Leads (No.)	Rotor Inertia (g.cm²)	Mass (Kg)
SY60HS47-1408	1.8	45	1.4	3.0	8	11	8	275	0.60
SY60HS56-1408	1.8	56	1.4	3.6	14.4	16.5	8	300	0.77
SY60HS67-1408	1.8	65	1.4	4.8	16.5	21	8	570	1.20
SY60HS88-1408	1.8	88	1.4	6.0	27.2	31	8	840	1.50

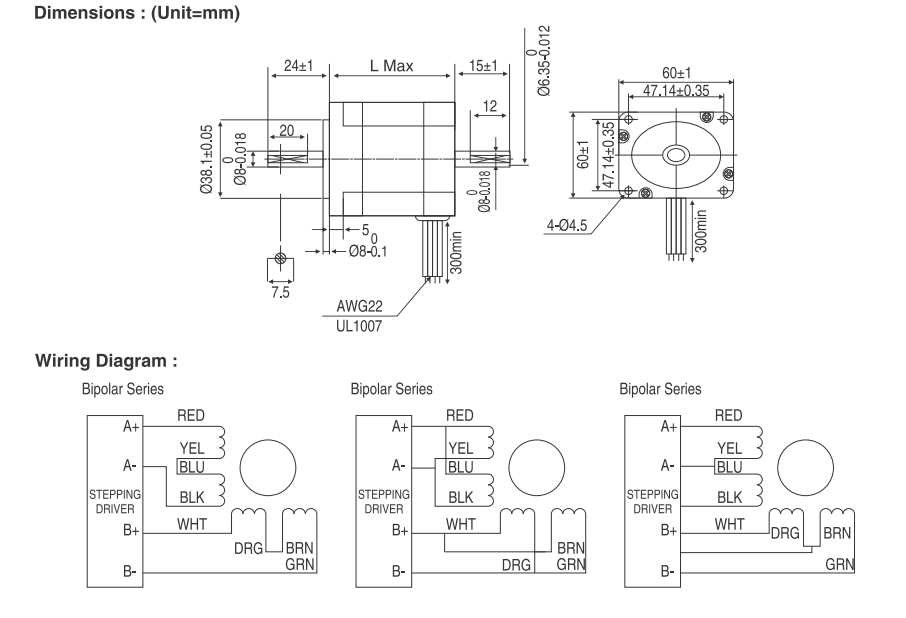

Dimension & Mechanical Drawings

NEMA 24 (60mm) Open Loop Stepper Motor DWG
