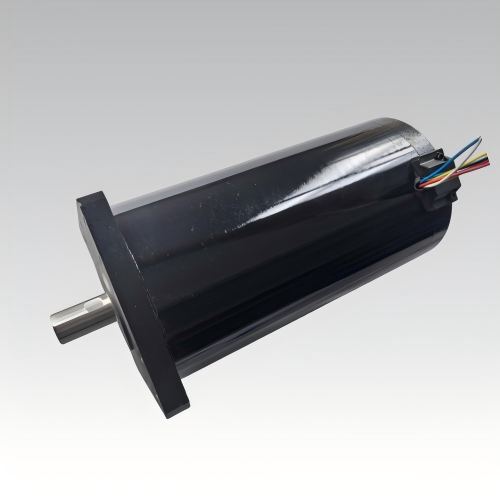

soya nema 52 130mm open loop hybrid stepper motor

SOYA NEMA 52 (130mm) 3-phase Ultra-Power Open-Loop Stepper Motor Series

The SOYA NEMA 52 (130mm) is a massive, ultra-power 3-phase open-loop hybrid stepper motor series engineered by SoyaMotor. Representing the ultimate scale in hybrid stepper technology, this giant 130mm square actuator converts high-load currents into supreme driving and holding torque. Featuring high-grade magnetic core arrays and robust anti-deflection shafts, it suppresses resonance while maintaining rigid, traceable positioning accuracy—flawlessly optimized for massive heavy-duty industrial printing presses, material mixers, metal stamping controllers, and extreme industrial drive installations.

Model:
SY130HC
Brand:
SOYA

Availability:

Quantity:



Inquire Add to Basket

Product Description

SOYA NEMA 52 (130mm) 3-Phase High-Power Hybrid Stepper Motor Series

Achieve ultimate mechanical output and smooth high-frequency response with the heavy-duty SOYA NEMA 52 series 3-phase hybrid stepper motor. Engineered within a massive 130mm square frame layout, this open-loop actuator utilizes a specialized 3-phase stator arrangement and a 1.2° step angle to deliver extreme torque density while drastically mitigating low-speed resonance. Manufactured entirely on our own shop floor, it represents the absolute peak performance for large-scale mechanical drives.

Key Features & Benefits

⚡ Advanced 3-Phase Technology The premium 3-phase design provides a refined 1.2° step angle, significantly reducing torque ripple, maximizing step consistency, and ensuring superior continuous high-speed synchronization.

⚙️ Supreme Dynamic Holding Torque Industrial-scale dynamic magnetic arrays supply a massive holding force up to 50 g.cm, successfully managing massive inertial loads and high structural strain without stalling.

Industrial Resonance Suppression Constructed with high-loss structural castings and premium low-loss alloys to severely suppress physical vibrations and thermal output during heavy automation plant shifts.

Factory-Direct Tailored Customization Our direct OEM production lines readily accept specialized custom designs, including keyed heavy core shafts, custom wire leads, and ruggedized electronic terminal sockets.

Typical Applications

Massive Heavy-Duty Printing Presses Industrial Material Blenders & Mixers Metal Stamping & Press Controllers Large CNC Stone Milling Centers Heavy-Duty Mechanical Drive Systems

Technical Specifications

Model No.	Step Angle (°)	Motor Length (mm)	Current/ Phase (A)	Resistance/ Phase (Ω)	Holding Torque (g.cm)	No-load Maximum Operating Frequency (HZ)	Mass (Kg)
SY130H3P-5026	1.2	170	5.0	0.80	26	4.10	13
SY130H3P-5036	1.2	225	5.0	1.30	36	13.1	18
SY130H3P-5050	1.2	280	5.0	1.60	50	17.5	22

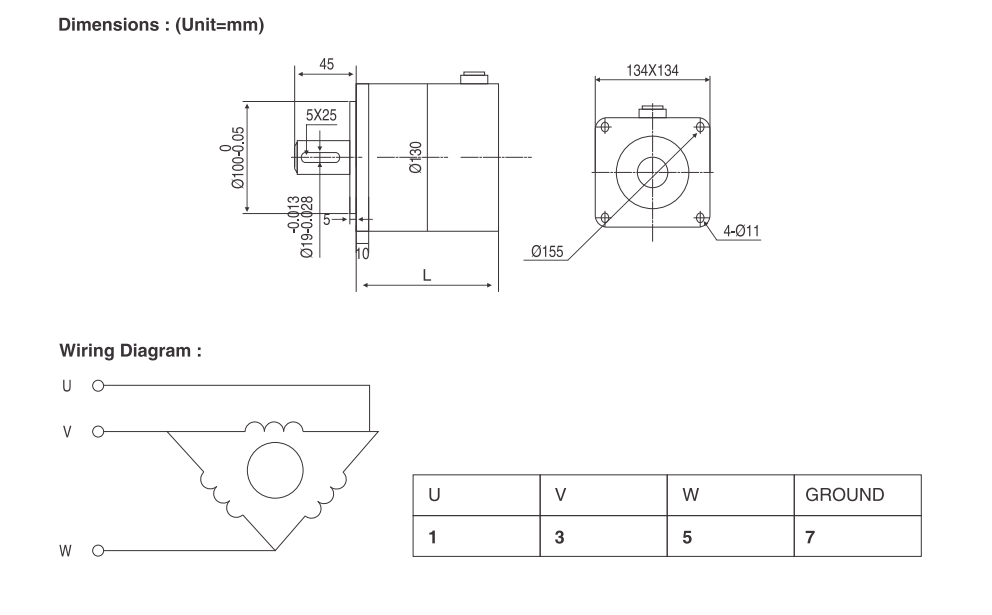

Dimension & Mechanical Drawings

NEMA 52 (130mm) Open Loop Stepper Motor dwg
