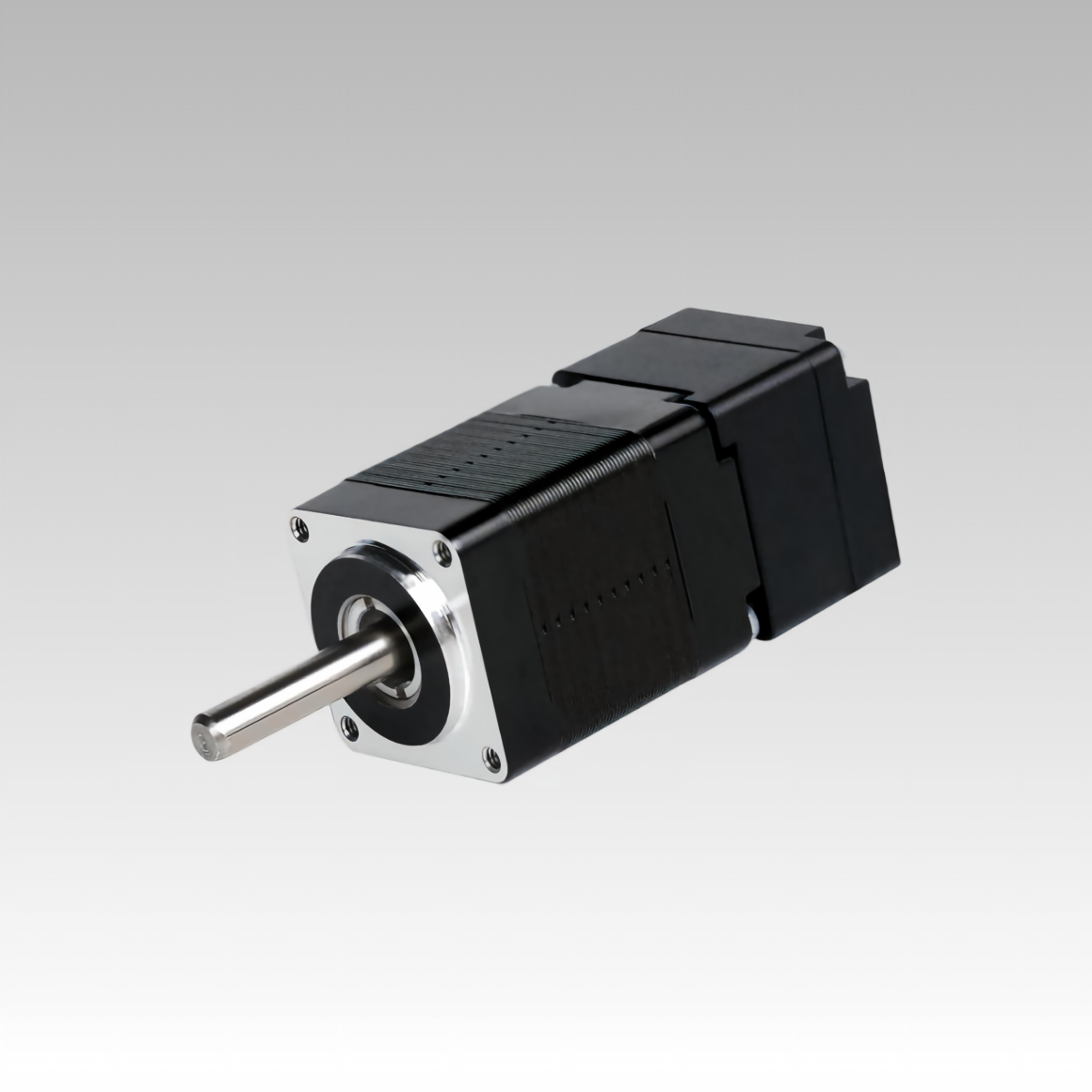

Unlock maximum precision and eliminate position loss with the high-performance SOYA NEMA 17 series closed-loop hybrid stepper motor. Featuring a standard 42mm square frame size, this closed-loop system integrates a high-resolution encoder to deliver flawless position tracking, higher usable torque, and lower thermal output. Perfect for demanding applications requiring dynamic acceleration and ultra-reliable positioning accuracy.
Integrated high-resolution encoder provides real-time position feedback, completely eliminating the risk of lost steps under sudden load changes.
Optimized magnetic design delivers significantly higher usable torque at high speeds compared to traditional open-loop motors.
Advanced current control adjusts dynamically based on the actual load, drastically reducing motor temperature and energy consumption.
Suppresses low-speed resonance and vibrations, ensuring ultra-smooth motion and whisper-quiet operation in clinical environments.
| Model No. | Step Angle (°) | Current (A) | Resistance (Ω) | Inductance (mH) | Holding Torque (N·m) | Motor Length (mm) | Encoder Res. (PPR) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 42HSE05N-D24 | 1.8 | 1.5 | 2.8 ±10% | 5.5 ±20% | 0.55 | 48 | 2500 | 0.45 |
