Unlock maximum precision and eliminate position loss with the high-performance SOYA NEMA 42 series closed-loop hybrid stepper motor. Featuring a massive 110mm square frame size and an outstanding 12N.m torque output, this closed-loop system integrates a high-resolution encoder to deliver flawless position tracking, higher usable torque, and lower thermal output. Perfect for demanding large-scale industrial applications requiring high load capacity, heavy-duty driving force, and ultra-reliable positioning accuracy.
Integrated high-resolution encoder provides real-time position feedback, completely eliminating the risk of lost steps under sudden load changes.
Optimized magnetic design delivers a tremendous 12N.m torque, ensuring brute holding torque and extreme load rigidity across extensive cycles.
Advanced current control adjusts dynamically based on the actual load, drastically reducing motor temperature and energy consumption.
Suppresses low-speed resonance and vibrations, ensuring dependable, low-vibration motion control for heavy mechanical systems.

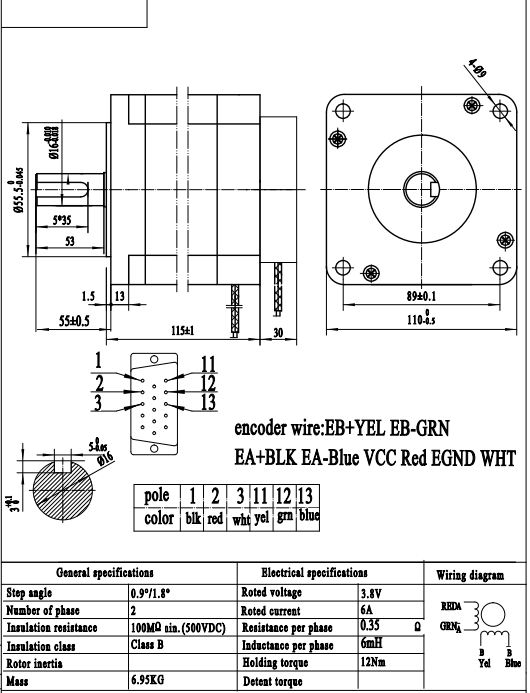

| Model No. | Step Angle (°) | Current (A) | Resistance (Ω) | Inductance (mH) | Holding Torque (N·m) | Motor Length (mm) | Encoder Res. (PPR) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 110HSE12N | 1.8 | 6A | 0.35 ±10% | 6 ±20% | 12.0 | 115 | - | 6.95 |
Our roots go back to 2002 as “Songya Motor Control Factory”. In 2017, we incorporated as Changzhou Songya Electromechanical Co., Ltd., marketing our systems worldwide under our registered brand SOYAMOTOR. Leveraging over 20 years of deep expertise in stepper, servo, and brushless motor manufacturing, we design and produce a comprehensive range of premium CNC digital cutting tools on our own shop floor. Beyond oscillating knives, our in-house production includes servo oscillating knives, drag knives, kiss-cut knives, creasing wheels, rotary knives, V-cut tools, and punching tools—delivering factory-direct precision with 100% traceable quality.
