Unlock maximum precision and eliminate position loss with the high-performance SOYA NEMA 34 series closed-loop hybrid stepper motor. Featuring a standard 86mm square frame size with robust torque outputs up to 12.0N.m, this closed-loop system integrates a high-resolution 1000 PPR encoder to deliver flawless position tracking, higher usable torque, and lower thermal output. Perfect for heavy-duty industrial applications requiring reliable load rigidity, dynamic acceleration, and ultra-reliable positioning accuracy.
Integrated high-resolution encoder provides real-time position feedback, completely eliminating the risk of lost steps under sudden load changes.
Optimized magnetic design covers multiple body specifications, providing continuous usable torque up to 12.0N.m under high-load demands.
Advanced current control adjusts dynamically based on the actual load, drastically reducing motor temperature and energy consumption.
Suppresses low-speed resonance and vibrations, ensuring ultra-smooth motion and whisper-quiet operation in industrial environments.

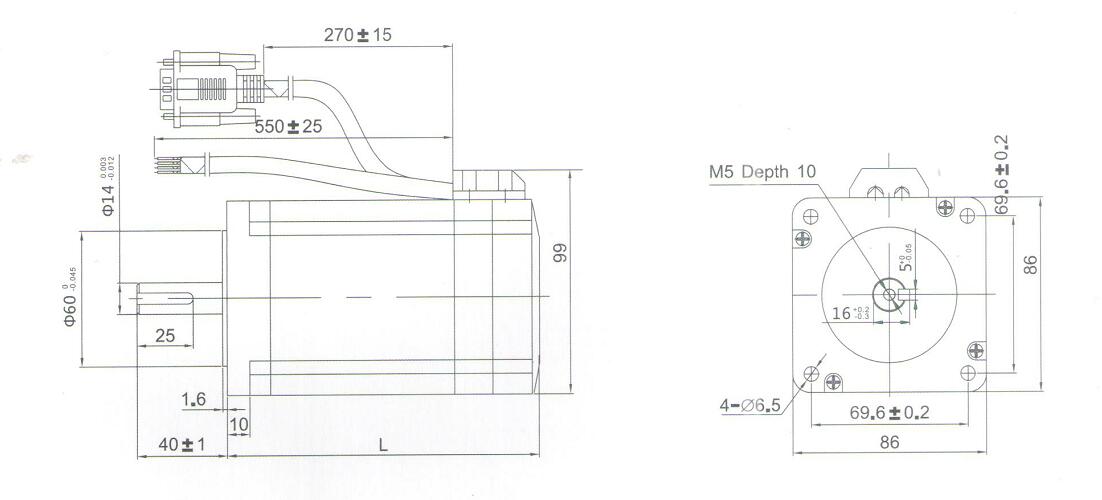

| Model No. | Step Angle (°) | Current (A) | Resistance (Ω) | Inductance (mH) | Holding Torque (N·m) | Motor Length (mm) | Encoder Res. (PPR) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 86HSE4N-BC38 | 1.8 | 6.0 | 0.45 ±10% | 3.7 ±20% | 4.5 | 82 | 1000 | 2.65 |
| 86HSE8N-BC38 | 1.8 | 6.0 | 0.45 ±10% | 3.7 ±20% | 8.0 | 118 | 1000 | 4.0 |
| 86HSE12N-BC38 | 1.8 | 6.0 | 0.45 ±10% | 5.2 ±20% | 12.0 | 156 | 1000 | 5.65 |
